Product Model

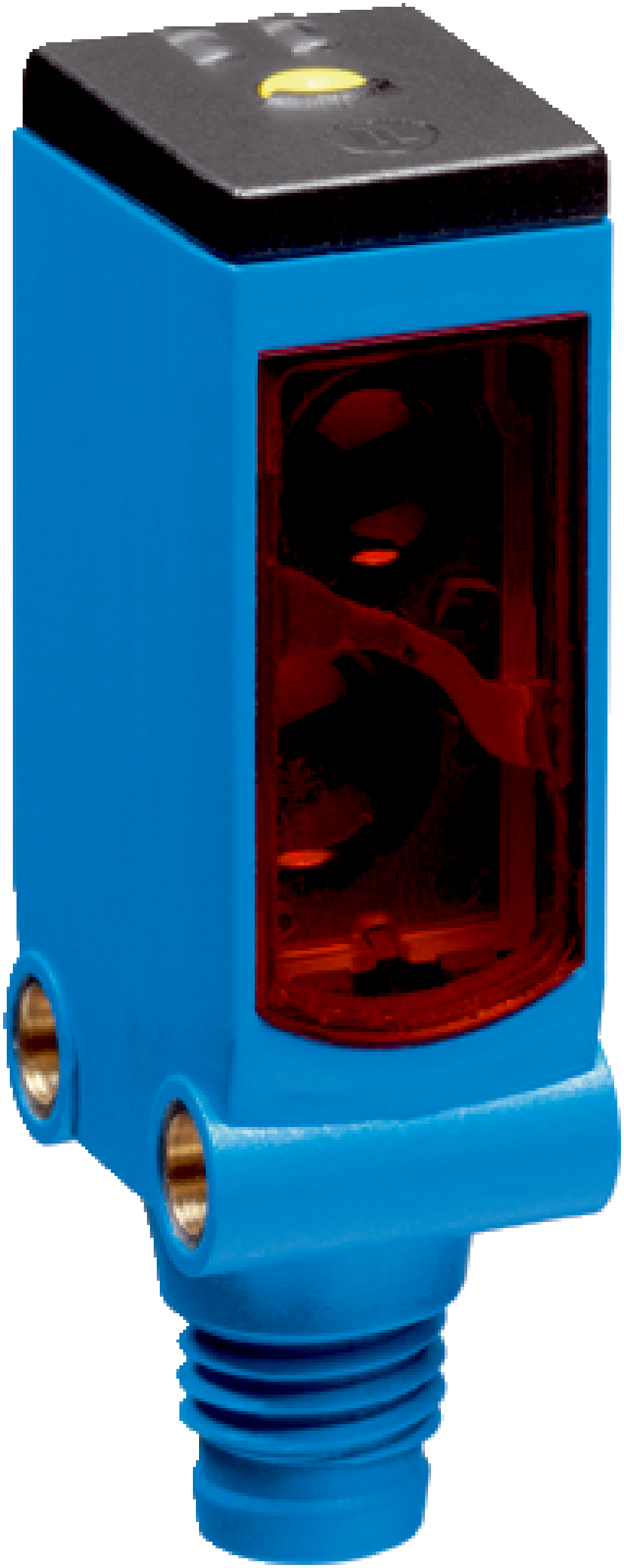

WTB4SLC-3P2262A00
Selling Points
- 1Compact Design: Measures 12.2 mm x 41.8 mm x 17.3 mm, ideal for space-constrained applications.
- 2High Sensitivity: Detects objects with 90% reflectance, ensuring reliable operation in various environments.
- 3Long Service Life: Average service life of 50,000 hours at +25°C, reducing maintenance needs.
- 4Versatile Connectivity: Equipped with a male M8 4-pin connector for easy integration into various systems.
- 5Advanced Laser Technology: Features a visible red laser light with a spot size of Ø 1 mm (170 mm), ensuring precise detection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
Sensing range max. | 25 mm ... 300 mm | Sensing range | 25 mm ... 300 mm |
Emitted beam_Light source | Laser2) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 1 mm (170 mm) | Key laser figures_Normative reference | EN 60825-1:2014, IEC 60825-1:2014 / CDRH 21 CFR 1040.10 & 1040.11 |
Key laser figures_Laser class | 1 | Key laser figures_Wave length | 650 nm |
Adjustment | Cable, Single teach-in button | Special applications | Detecting small objects |
Mounting hole | M3 | Pin 2 configuration | External input, Teach-in input, Sender off input, Detection output, logic output |
IO-Link_Data transmission rate | COM2 (38,4 kBaud) | IO-Link_Cycle time | 2.3 ms |
IO-Link_Process data length | 16 Bit | IO-Link_Process data structure | Bit 0 = switching signal QL1 |
IO-Link | Bit 1 = switching signal QL2 | IO-Link | Bit 2 ... 15 = empty |
IO-Link_VendorID | 26 | IO-Link_DeviceID HEX | 0x800109 |
IO-Link_DeviceID DEC | 8388873 | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | < 5 V | Current consumption | 30 mA |
Protection class | III | Digital output_Type | PNP4)5) |
Digital output_Switching mode | Light/dark switching4) | Digital output_Output current Imax. | ≤ 100 mA |
Digital output_Response time | ≤ 0.5 ms6) | Digital output_Repeatability (response time) | 150 µs7) |
Digital output_Switching frequency | 1,000 Hz8) | Output function | Complementary |
Circuit protection | A9)#!#B10)#!#C11) | Response time Q/ on Pin 2 | 300 µs ... 450 µs |
Switching frequency Q / to pin 2 | 1,000 Hz | Housing | Rectangular |
Design detail | Slim | Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
Connection | Male connector M8, 4-pin | Material_Housing | Plastic, Novodur |
Material_Front screen | Plastic, PMMA | Weight | 100 g |
Smart Task name | Base logics | Logic function | Direct#!#AND#!#OR#!#WINDOW#!#Hysteresis |
Timer function | Deactivated#!#Switch-on delay#!#Off delay#!#ON and OFF delay#!#Impulse (one shot) | Inverter | Yes |
Switching frequency | SIO Direct: 1000 Hz1)#!#SIO Logic: 600 Hz2)#!#IOL: 450 Hz3) | Response time | SIO Direct: 300 µs ... 450 µs1)#!#SIO Logic: 750 µs ... 900 µs2)#!#IOL: 800 µs ... 1000 µs3) |
Repeatability | SIO Direct: 150 µs1)#!#SIO Logic: 150 µs2)#!#IOL: 400 µs3) | Switching signal_Switching signal QL1 | Switching output |
Switching signal_Switching signal QL2 | Switching output | Device status | Yes |
Specifications may be subject to change without notice
