Product Model

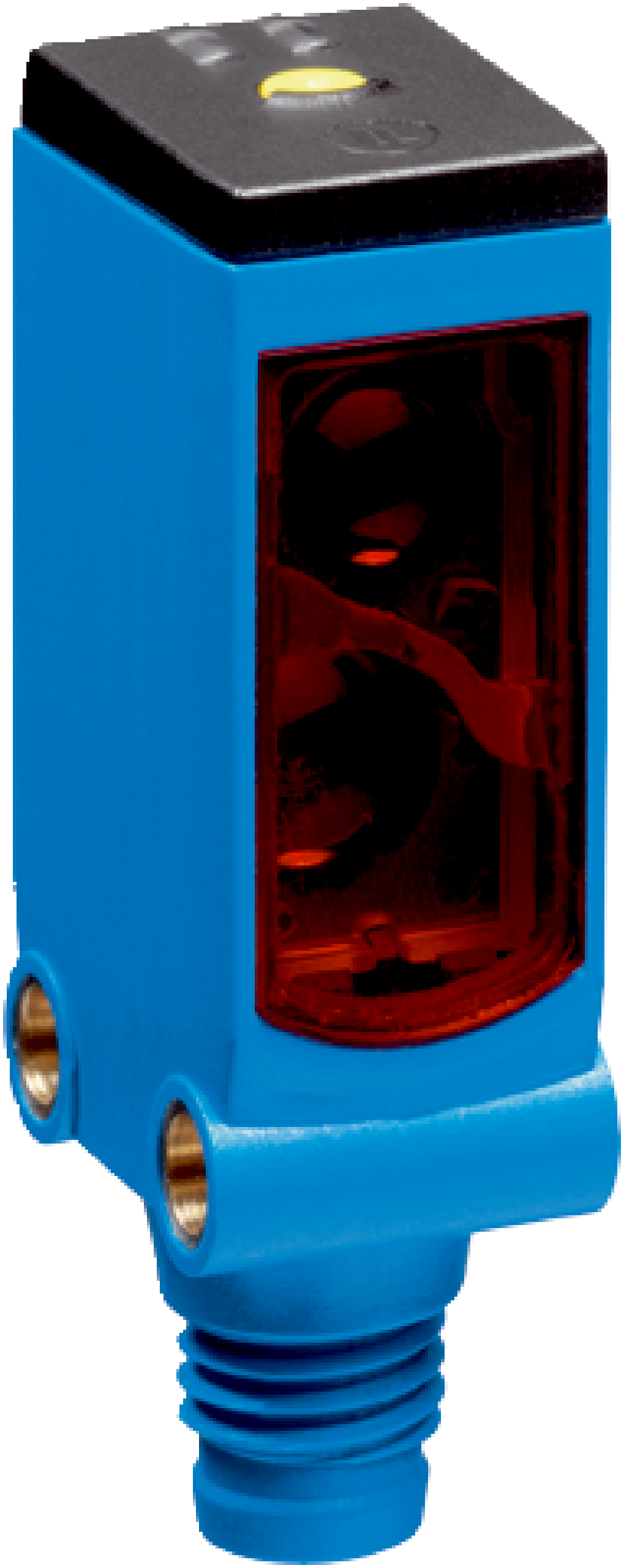

WTF4S-3P3231S08
Selling Points
- 1Detects objects within 0 m to 4 m with high accuracy.
- 2Withstands temperatures below 0 °C and various environmental conditions.
- 3Enhances signal quality by suppressing background noise.
- 4Quick and convenient setup for fast integration into your system.
- 5Suitable for a wide range of detection tasks in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Foreground suppression |
Sensing range max. | 3 mm ... 100 mm | Sensing range | 15 mm ... 100 mm |
Emitted beam_Light source | PinPoint LED2) | Emitted beam_Type of light | Visible red light |
Emitted beam_Light spot size (distance) | Ø 2.5 mm (50 mm) | Key LED figures_Wave length | 650 nm |
Adjustment | Potentiometer | Special features | Printed mask on front lens |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 20 mA | Protection class | III |
Digital output_Type | PNP | Digital output_Switching mode | Light/dark switching |
Digital output_Output current Imax. | ≤ 100 mA | Digital output_Response time | < 0.5 ms4) |
Digital output_Switching frequency | 1,000 Hz5) | Output function | Complementary |
Circuit protection | A6)#!#C7)#!#D8) | Housing | Rectangular |
Design detail | Slim | Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
Connection | Cable with M8 male connector, 4-pin | Connection detail_Conductor size | 0.14 mm² |
Connection detail_Cable diameter | Ø 3.4 mm | Connection detail_Length of cable (L) | 100 mm1) |
Material_Housing | Plastic, ABS | Material_Front screen | Plastic, PMMA |
Material_Cable | Plastic, PVC | Weight | 30 g |
Specifications may be subject to change without notice
