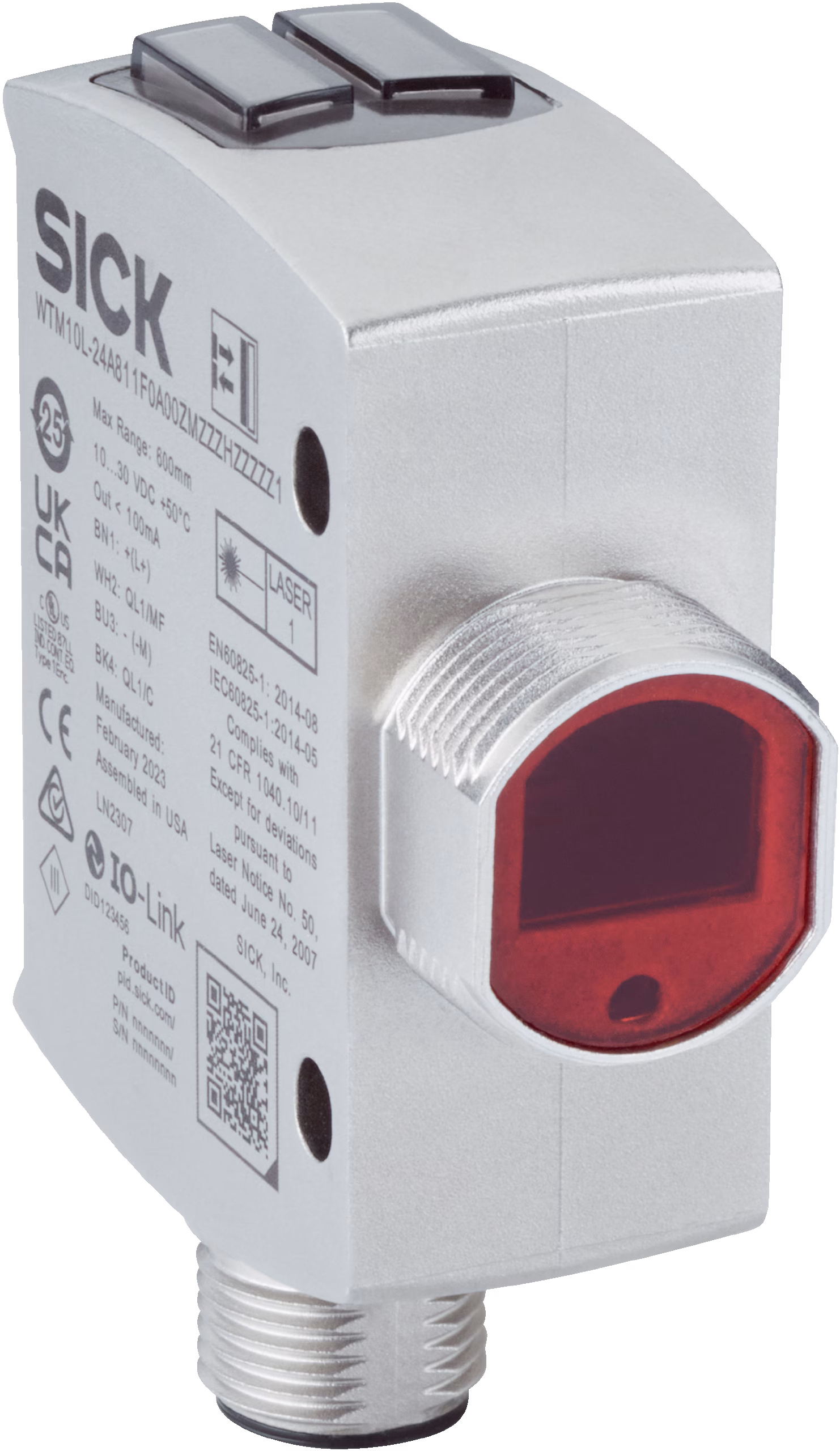

Product Model
WTM10L-241611D0A00ZWZZZZZZZZZ1
Selling Points
- 1Hybrid Design: Combines threaded M18 front or side 1-inch mounting hole for versatile installation.
- 2Advanced Multi-Mode Functionality: Includes background suppression, foreground suppression, and multi-mode for diverse applications.
- 3High Precision Detection: Offers sensing ranges from 25mm to 700mm with less than 3% repeatability error at maximum distance.
- 4Secure Interface: Features a button-free interface with lockout ability to prevent unwanted changes in the field.
- 5Durable Construction: Built with metal housing and IP67/69K rating for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression, Foreground suppression, MultiMode |
MultiMode | Background suppression#!#Foreground suppression#!#1-point teach-in#!#2-point teach-in#!#Manual teach-in#!#ApplicationSelect (Mode 1 - Speed, Mode 2 - Standard, Mode 3 - Precision)#!#Measurement | Sensing range_Sensing range min. | 25 mm (Mode 1 - Speed) |
Sensing range | 25 mm (Mode 2 - Standard) | Sensing range | 25 mm (Mode 3 - Precision) |
Sensing range_Sensing range max. | 300 mm (Mode 1 - Speed) | Sensing range | 500 mm (Mode 2 - Standard) |
Sensing range | 700 mm (Mode 3 - Precision) | Sensing range_Adjustable switching threshold for background suppression | 25 mm ... 300 mm (Mode 1 - Speed) |
Sensing range | 25 mm ... 500 mm (Mode 2 - Standard) | Sensing range | 25 mm ... 700 mm (Mode 3 - Precision) |
Sensing range_Reference object | Object with 90% remission factor (complies with standard white according to DIN 5033) | Sensing range_Minimum distance between set sensing range and background (black 6% / white 90%) | 6 mm, at a distance of 250 mm (Mode 1 - Speed) |
Sensing range | 8 mm, at a distance of 400 mm (Mode 2 - Standard) | Sensing range | 10 mm, at a distance of 500 mm (Mode 3 - Precision) |
Sensing range_Recommended sensing range for the best performance | 50 mm ... 250 mm (Mode 1 - Speed) | Sensing range | 50 mm ... 400 mm (Mode 2 - Standard) |
Sensing range | 50 mm ... 500 mm (Mode 3 - Precision) | Distance value_Measuring range | 25 mm ... 700 mm |
Distance value_Resolution | 1 mm | Distance value_Repeatability | < 0.5 %1)2)3) |
Distance value_Accuracy | < 4 %1) | Distance value_Distance value output | Via IO-Link + display |
Emitted beam_Light source | Laser | Emitted beam_Type of light | Visible red light |
Emitted beam_Shape of light spot | Point-shaped | Emitted beam_Light spot size (distance) | Ø 0.4 mm (250 mm) |
Emitted beam_Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.0° (at Ta = +23 °C) | Key laser figures_Normative reference | IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11, EN 60825-1:2014, IEC 60825-1:2014 (except for tolerances according to Laser Notice No. 56 dated May 8, 2019) |
Key laser figures_Laser class | 1 | Key laser figures_Wave length | 655 nm |
Key laser figures_Pulse duration | 4 µs | Key laser figures_Maximum pulse power | < 2.5 mW |
Key laser figures_Average service life | 50,000 h at TU= +25 °C | Smallest detectable object (MDO) typ. | 0.6 mm (at a distance of 250 mm) |
Smallest detectable object (MDO) typ. | Object with 90% remission factor (complies with standard white according to DIN 5033) | Adjustment_Touch display | For setting the sensing range and configuring the sensor parameters |
Adjustment_IO-Link | For configuring the sensor parameters and Smart Task functions | Indication_Display | Display of mode, display of output states, display of the distance value, display of the set value |
Indication_LED green | Operating indicatorStatic on: power onFlashing: IO-Link mode | Indication_LED yellow | Status of received light beamStatic on: object presentStatic off: object not present |
Special features | MultiMode | Special applications | Detecting small objects, Detection of objects moving at high speeds, Detecting flat objects, Detecting uneven, shiny objects, Detection of poorly remitting and tilted objects |
Items supplied | Fastening nut (1x) | IO-Link_Data transmission rate | COM2 (38,4 kBaud) |
IO-Link_Cycle time | 3.4 ms | IO-Link_Process data length | 32 Bit |
IO-Link_Process data structure | Bit 0 = switching signal QL1 | IO-Link | Bit 1 = switching signal QL2 |
IO-Link | Bit 2 ... 5 = Qint.1 ... Qint.4 | IO-Link | Bit 6 = Operating status of the sensor |
IO-Link | Bit 7 ... 15 = Empty | IO-Link | Bit 16 ... 31 = Distance to object |
IO-Link_VendorID | 26 | IO-Link_DeviceID HEX | 0x80032E |
IO-Link_DeviceID DEC | 8389422 | IO-Link_Compatible master port type | A |
IO-Link_SIO mode support | Yes | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | ≤ 5 V | Usage category | DC-12 (According to EN 60947-5-2)#!#DC-13 (According to EN 60947-5-2) |
Current consumption | ≤ 25 mA, without load. At U#!#= 24 V | Protection class | III |
Digital output_Number | 2 | Digital output_Type | Push-pull: PNP/NPN, Individually adjustable |
Digital output_Switching mode | Light/dark switching | Digital output_Output characteristic | Individually adjustable |
Digital output_Signal voltage PNP HIGH/LOW | Approx. UB-2.0 V / 0 V | Digital output_Signal voltage NPN HIGH/LOW | Approx. UB-1.0 V / < 2.5 V |
Digital output_Output current Imax. | ≤ 100 mA | Digital output_Circuit protection outputs | Reverse polarity protected |
Digital output | Overcurrent protected | Digital output | Short-circuit protected |
Digital output_Response time | 1.8 ms, 5 ms, 15 ms (Mode 1 - Speed, Mode 2 - Standard, Mode 3 - Precision)2)2)2) | Digital output_Repeatability (response time) | < 0,5 % |
Digital output_Switching frequency | 275 Hz, 100 Hz, 30 Hz (Mode 1 - Speed, Mode 2 - Standard, Mode 3 - Precision)3)3)3) | Pin/Wire assignment_BN 1 | + (L+) |
Pin/Wire assignment_WH 2 | ǬL1/MFDigital output, dark switching, object present → output ǬL1 LOW (background suppression)digital output, light switching, object present → output QL1 LOW (foreground suppression)The pin 2 function of the sensor can be configuredAdditional possible settings via IO-Link | Pin/Wire assignment_BU 3 | - (M) |
Pin/Wire assignment_BK 4 | QL1/CDigital output, light switching, object present → output QL1 HIGH (background suppression)digital output, dark switching, object present → output ǬL1 HIGH (foreground suppression)IO-Link communication CThe pin 4 function of the sensor can be configuredAdditional possible settings via IO-Link | Housing | Hybrid |
Dimensions (W x H x D) | 18 mm x 57 mm x 42.2 mm | Connection | Male connector M12, 4-pin |
Material_Housing | Stainless steel, Stainless steel V4A (1.4404, 316L) | Material_Front screen | Plastic, PMMA |
Material_Display cover | Plastic, PMMA | Material_LED | Plastic, ABS |
Material_Male connector | Stainless steel, Stainless steel V4A (1.4404, 316L) | Weight | Approx. 100 g |
Maximum tightening torque of the fixing screws | 0.56 Nm | Max. tightening torque of the M18 fixing nuts | 2 Nm |
Smart Task name | Base logics | Logic function | Direct#!#AND#!#OR#!#Window#!#Hysteresis |
Timer function | Deactivated#!#Switch-on delay#!#Off delay#!#ON and OFF delay#!#Impulse (one shot) | Inverter | Yes |
Switching signal_Switching signal QL1 | Switching output | Switching signal_Switching signal ǬL1 | Switching output |
Device temperature_Measuring range | Very cold, cold, moderate, warm, hot | Device status | Yes |
Detailed device status | Yes | Operating hour counter | Yes |
Operating hours counter with reset function | Yes |
Specifications may be subject to change without notice
