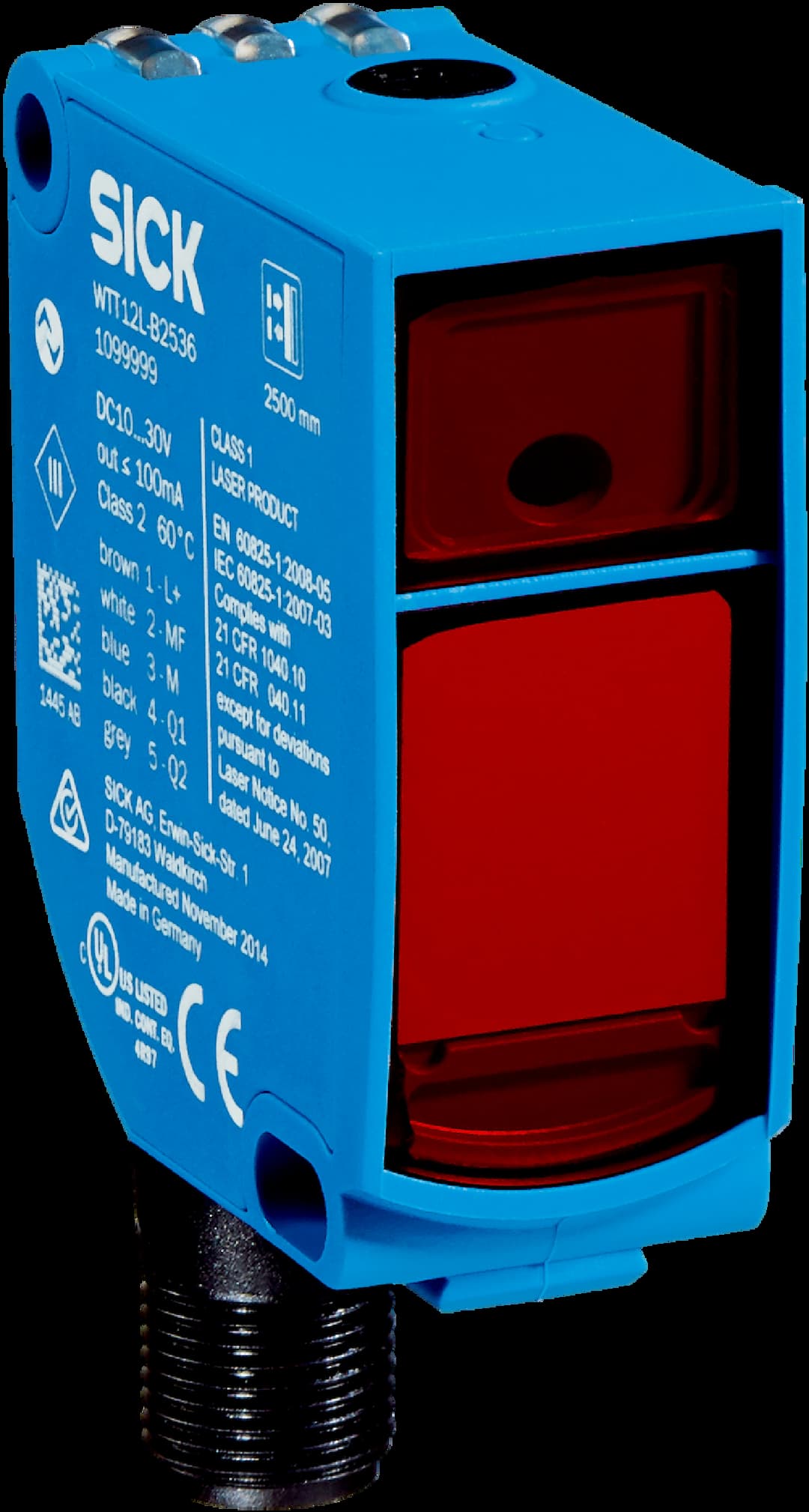

Product Model
WTT12L-B2561
Selling Points
- 1Precise Detection: Utilizes time-of-flight technology for accurate object detection.
- 2Robust Design: Features a VISTAL® housing for maximum ruggedness and durability.
- 3Adjustable Sensing Range: Offers adjustable sensing ranges from 50 mm to 3800 mm.
- 4High Switching Frequency: Operates at a high switching frequency of 100 Hz.
- 5Long Service Life: Designed to last with an average service life of 100,000 hours at +25 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression, Optical time-of-flight |
Housing design (light emission) | Rectangular | Sensing range max. | 50 mm ... 3,800 mm |
Sensing range | 100 mm ... 3,800 mm2)#!#1) | Type of light | Visible red light |
Light source | Laser | Light spot size (distance) | Ø 18 mm (3,800 mm) |
Wave length | 658 nm | Laser class | 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) |
Adjustment | Potentiometer, 4 turns (1 x) | Safety-related parameters_MTTFD | 133 years |
Safety-related parameters_DCavg | 0 % | Safety-related parameters_TM(mission time) | 20 years |
Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
Current consumption | 70 mA | Switching output | Push-pull: PNP/NPN |
Number of switching outputs | 2 (Q, /Q) | Switching mode | Light/dark switching |
Output current Imax. | ≤ 100 mA | Response time | ≤ 5 ms |
Switching frequency | 100 Hz | Analog output | - |
Input | Sender off | Circuit protection | A7)#!#B8)#!#C9) |
Protection class | III | Enclosure rating | IP67 |
Warm-up time | < 15 min | Initialization time | < 300 ms |
Dimensions (W x H x D) | 20 mm x 49.6 mm x 44.2 mm | Housing material | Plastic, VISTAL® |
Optics material | Plastic, PMMA | Weight | 48 g |
Connection type | Male connector M12, 5-pin |
Specifications may be subject to change without notice
