Product Model

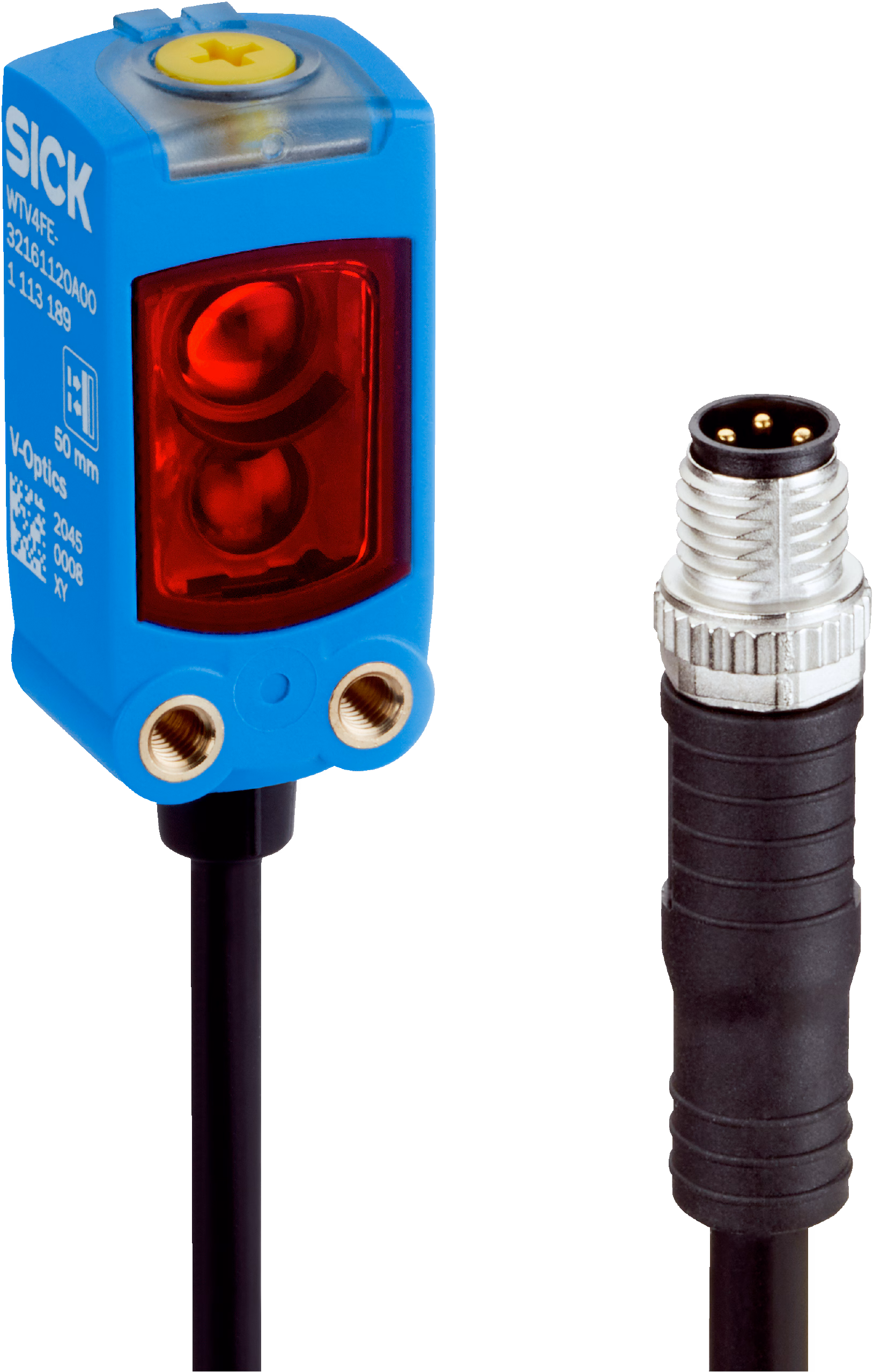

WTV4FE-97311120ZZZ
Selling Points
- 1Advanced Background Suppression: The WTV4FE-97311120ZZZ features advanced background suppression technology for reliable detection in complex environments.
- 2High Sensitivity: With a sensing range of 2 mm to 22 mm, this sensor offers high sensitivity and accuracy in proximity detection.
- 3V-Optics Technology: Utilizing V-optics, this sensor enhances its ability to distinguish between foreground and background objects, ensuring precise detection.
- 4Visible Red Light Source: Equipped with a PinPoint LED visible red light source, the sensor provides clear illumination for optimal performance.
- 5Durable Rectangular Housing: The sensor is housed in a durable rectangular enclosure, suitable for various industrial settings and environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression, V-optics |
Sensing range_Sensing range min. | 2 mm | Sensing range_Sensing range max. | 50 mm |
Sensing range_Adjustable switching threshold for background suppression | 15 mm ... 50 mm | Sensing range_Reference object | Object with 90% remission factor (complies with standard white according to DIN 5033) |
Sensing range_Minimum distance between set sensing range and background (black 6% / white 90%) | 1 mm, at a distance of 21 mm | Sensing range_Recommended sensing range for the best performance | 15 mm ... 30 mm |
Emitted beam_Light source | PinPoint LED | Emitted beam_Type of light | Visible red light |
Emitted beam_Shape of light spot | Rectangular | Emitted beam_Light spot size (distance) | 0.5 mm x 1.9 mm (30 mm) |
Emitted beam_Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.5° (at Ta = +23 °C) | Key LED figures_Normative reference | EN 62471:2008-09 | IEC 62471:2006, modified |
Key LED figures_LED risk group marking | Free group | Key LED figures_Wave length | 635 nm |
Key LED figures_Average service life | 100,000 h at Ta= +25 °C | Smallest detectable object (MDO) typ. | 0.1 mm (At 30 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) |
Adjustment_Teach-Turn adjustment | BluePilot: For setting the sensing range | Indication_LED blue | BluePilot: sensing range indicator |
Indication_LED green | Operating indicatorStatic on: power on | Indication_LED yellow | Status of received light beamStatic on: object presentStatic off: object not present |
Special applications | Detecting transparent objects | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | ≤ 5 V | Usage category | DC-12 (According to EN 60947-5-2)#!#DC-13 (According to EN 60947-5-2) |
Current consumption | ≤ 25 mA, without load. At U#!#= 24 V | Protection class | III |
Digital output_Number | 1 | Digital output_Type | Push-pull: PNP/NPN |
Digital output_Switching mode | Light switching | Digital output_Signal voltage PNP HIGH/LOW | Approx. UB-2.5 V / 0 V |
Digital output_Signal voltage NPN HIGH/LOW | Approx. UB/ < 2.5 V | Digital output_Output current Imax. | ≤ 100 mA |
Digital output_Circuit protection outputs | Reverse polarity protected | Digital output | Overcurrent protected |
Digital output | Short-circuit protected | Digital output_Response time | ≤ 500 µs |
Digital output_Repeatability (response time) | 150 µs2) | Digital output_Switching frequency | 1,000 Hz3) |
Pin/Wire assignment_Function of pin 4/black (BK) | Digital output, light switching, object present → output Q HIGH4) | Housing | Rectangular |
Design detail | Flat | Dimensions (W x H x D) | 16 mm x 40.1 mm x 12.1 mm |
Connection | Cable with connector M8, 3-pin, with knurled nuts, 340 mm | Connection detail_Deep-freeze property | Do not bend below 0 °C |
Connection detail_Conductor size | 0.14 mm² | Connection detail_Cable diameter | Ø 3.4 mm |
Connection detail_Length of cable (L) | 300 mm | Material_Housing | Plastic, VISTAL® |
Material_Front screen | Plastic, PMMA | Material_Cable | Plastic, PVC |
Material_Male connector | Plastic, VISTAL® | Weight | Approx. 30 g |
Maximum tightening torque of the fixing screws | 0.4 Nm | Device temperature_Measuring range | Very cold, cold, moderate, warm, hot |
Device status | Yes | Detailed device status | Yes |
Operating hour counter | Yes | Operating hours counter with reset function | Yes |
Quality of teach | Yes |
Specifications may be subject to change without notice
