Product Model

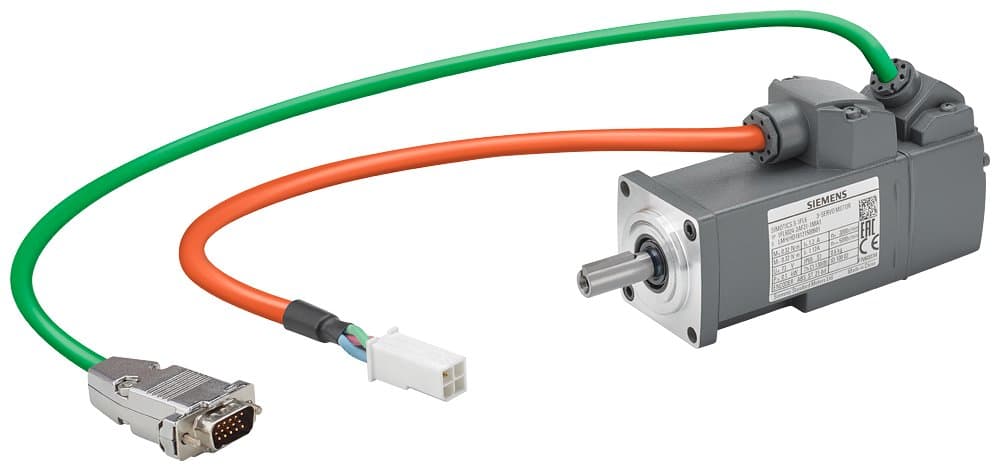

1FL6022-2AF21-1MB1
Selling Points
- 1Low Inertia Design: Optimized for high-speed applications with minimal mechanical resistance.
- 2Keyway with Holding Brake: Ensures secure positioning and precise control.
- 3Certified Quality: Meets CE and ISO standards for reliability and safety.
- 4Versatile Usage: Suitable for workstation and server environments.
- 5High Efficiency: Designed to reduce energy consumption and enhance overall system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Arrangement of Electrical Connection | Cable Outlet | Certifications | CE, EAC |
Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (No Condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
Ambient Temperature / During Operation / Maximum | 40 °C | Ambient Temperature / During Operation / Minimum | 0 °C |
Vibration Level Rating | Level A | Net Weight / With Brake Motor | 0.70 kg |
Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.14 N.m/A |
Consumption Current / Maximum | 3.60 A | Consumption Current / Winding Overheating 85 K / Rating | 1.20 A |
Output Mechanical Power [hp] | 0.07 hp | Output Mechanical Power / Winding Overheating 85 K / Rating | 0.05 kW |
Shaft Height / Rated Value / Remarks | 20 | Torque / Maximum | 0.48 N.m |
Shaft End Model / Drive Side | Keyed Shaft | Speed / Rating | 3000 1/min |
Parking Brake | Yes | Motor Type | Low Inertia |
Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 1FL6022-2AF21-1MB1 |
Specifications may be subject to change without notice
