Product Model

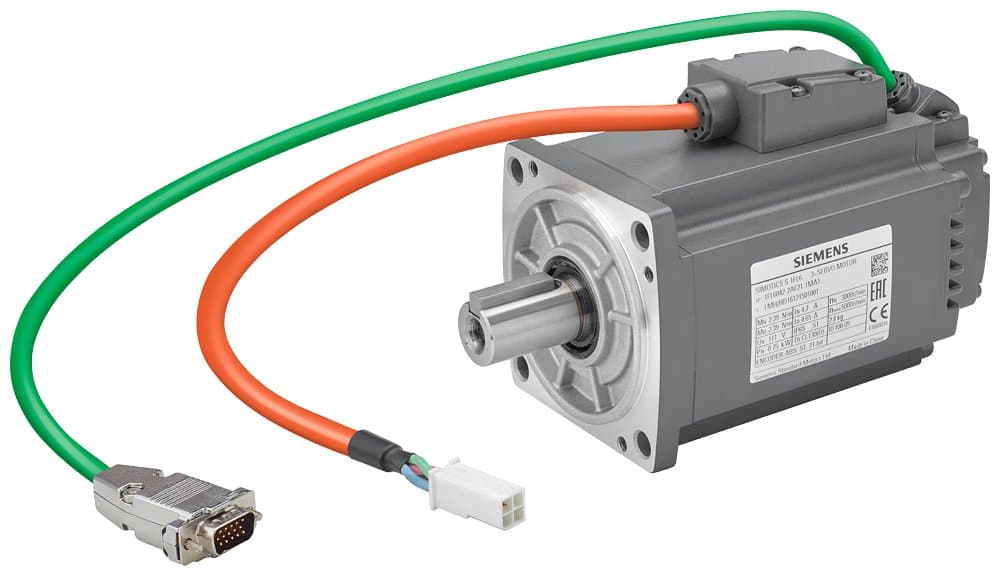

1FL6042-2AF21-1MA1
Selling Points
- 1Equipped with a 21-bit absolute encoder for precise control and measurement.
- 2Features a shaft height of 40 mm and IP65 protection with a fitting oil seal for drive SINAMICS V90.
- 3Delivers 0.75 kW power at 3000 rpm with a torque of 2.39 Nm.
- 4Meets RoHS directive since 2018 and adheres to WEEE take-back obligations.
- 5Compatible with SINAMICS V90 drives, ideal for various industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Arrangement of Electrical Connection | Cable Outlet | Certifications | CE, EAC |
Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
Ambient Temperature / During Operation / Maximum | 40 °C | Ambient Temperature / During Operation / Minimum | 0 °C |
Vibration Level Rating | Level A | Net Weight / Motor | 2.80 kg |
Structure Form of Rotating Motor / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.51 N.m/A |
Consumption Current / Maximum | 14.20 A | Consumption Current / Winding Overheating 85 K / Rating | 4.70 A |
Mechanical Output Power [hp] | 1.02 hp | Mechanical Output Power / Winding Overheating 85 K / Rating | 0.75 kW |
Shaft Height / Rated Value / Remarks | 40 | Torque / Maximum | 7.20 N.m |
Shaft End Model / Drive Side | Keyed Shaft | Speed / Rating | 3000 1/min |
Parking Brake | No | Motor Type | Low Inertia |
Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 1FL6042-2AF21-1MA1 |
Specifications may be subject to change without notice
