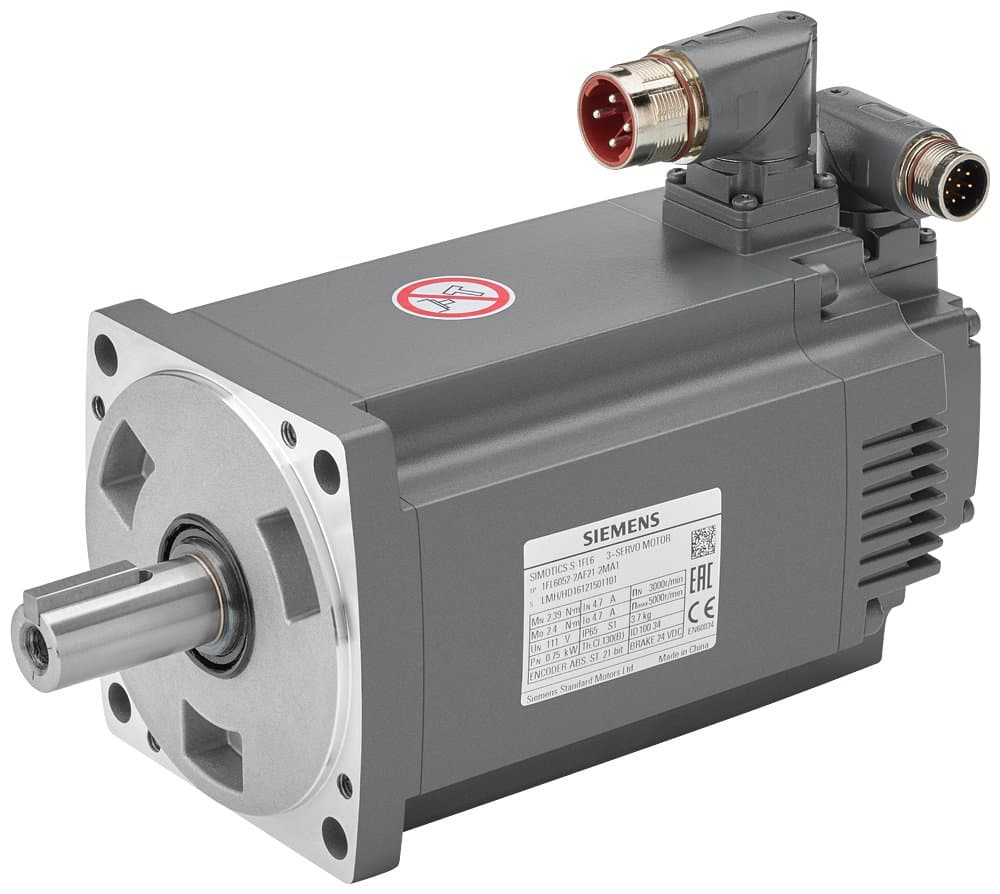

Product Model
1FL6052-2AF21-2MG1
Selling Points
- 1High precision and dynamic performance.
- 2Compact design for space-efficient applications.
- 3300% overload capability for robust operation.
- 4Permanent-magnet synchronous motor for reliable operation.
- 5Absolute single-turn 21-bit encoder for precise positioning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Arrangement of Electrical Connection | Bent Connector (Rotatable) for Any Output Direction | Certification | CE, EAC |
Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
Ambient Temperature / During Operation / Maximum Value | 30 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
Vibration Level Rating | Level A | Net Weight / Motor | 5.50 kg |
Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 0.46 N.m/A |
Consumption Current / Maximum Value | 31.80 A | Consumption Current / Winding Overheating 85K / Rated Value | 10.60 A |
Output Mechanical Power [hp] | 2.04 hp | Output Mechanical Power / Winding Overheating 85K / Rated Value | 1.50 kW |
Shaft Height / Rated Value / Remarks | 50 | Torque / Maximum Value | 14.30 N.m |
Shaft End Model / Drive Side | Plain Shaft | Speed / Rated Value | 3000 1/min |
Parking Brake | No | Motor Type | Low Inertia |
Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 1FL6052-2AF21-2MG1 |
Specifications may be subject to change without notice
