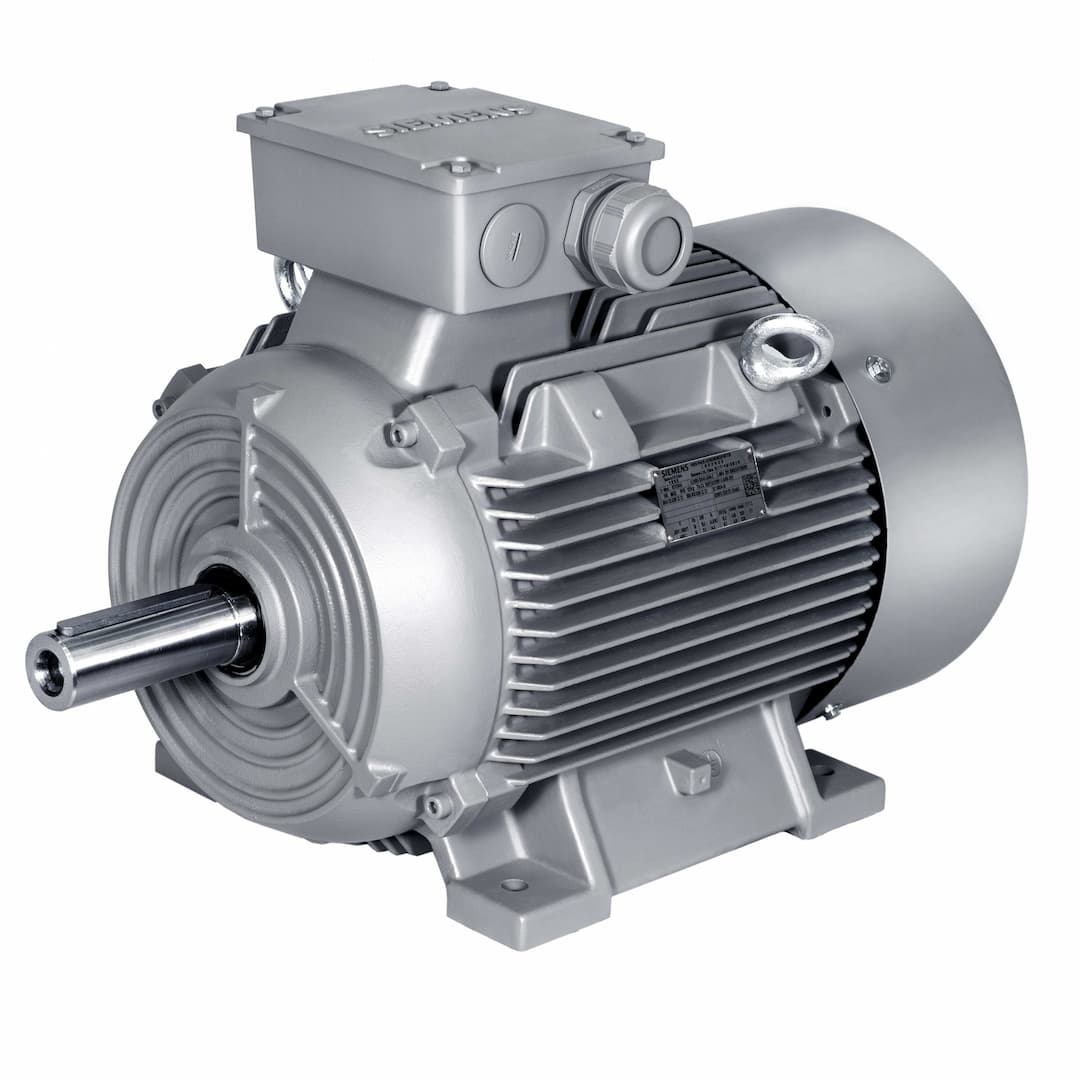

Product Model
1LE0004-3AA73-3AA5
Selling Points
- 1Achieves efficiency grade 2 according to GB18613-2020 and IE4 class according to IEC 60034-30.
- 2Optimized structure with a tight footprint, suitable for various mounting types.
- 3Designed with IP55 environmental protection, ensuring reliable operation in harsh conditions.
- 4Suitable for continuous duty operations (S1) and variable speed applications.
- 5Available with re-greasing devices, reinforced bearings, and winding protections for enhanced performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Unit Weight | 1378kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
Operating Altitude | <1000m | Protection Rating | IP55 |
Rated Torque | 641Nm | Rated Current | 355/205 |
Mounting Method | IM B3 | Motor Shaft Height | FS315L |
Rated Speed | 2980rpm | Synchronous Speed | 3000rpm |
Motor Poles | 2 pole | Rated Power | 200KW |
Power Supply Phases | 3AC | Rated Frequency | 50Hz |
Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 1LE0004-3AA73-3AA5 |
Specifications may be subject to change without notice
