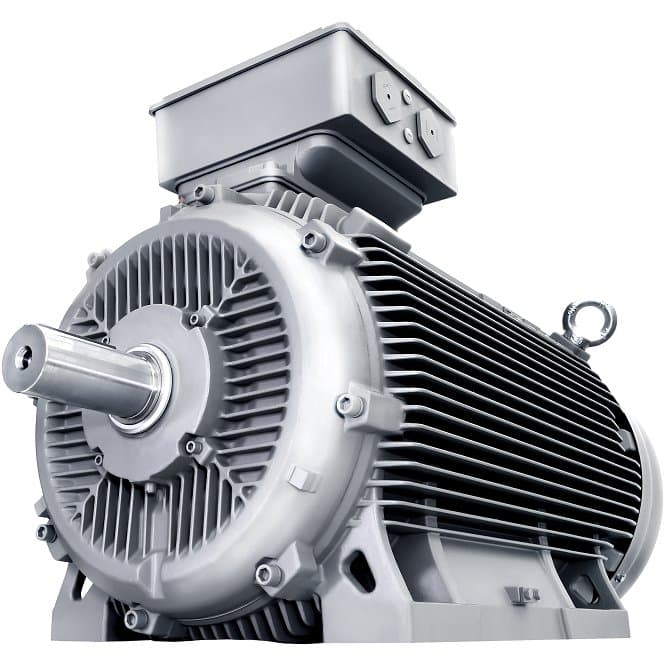

Product Model
1LE8003-3BC33-3AA4
Selling Points
- 1Achieve high efficiency with an IE3 rating, reducing energy consumption and lowering operational costs.
- 2Built with a cast-iron housing, ensuring durability and longevity in demanding industrial environments.
- 3Available in 250 kW (50 Hz) and 280 kW (60 Hz), catering to various industrial power needs.
- 4Designed with an IP55 rating, providing protection against dust and water ingress, ensuring reliable operation.
- 5Compatible with global standards, including IEC 60034-30-1, ensuring seamless integration into diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Unit Weight (kg) | 2270kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
Operating Altitude | <1000m | Protection Rating | IP55 |
Rated Torque | 3414Nm | Rated Current | 660/380 |
Mounting Method | IM B3 | Motor Shaft Height | FS355 |
Rated Speed | 993rpm | Synchronous Speed | 1000rpm |
Motor Poles | 6 pole | Rated Power | 355KW |
Power Supply Phases | 3AC | Rated Frequency | 50Hz |
Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
Lifecycle | P.M300 | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 1LE8003-3BC33-3AA4 |
Specifications may be subject to change without notice
