Product Model
3KC3424-2AA22-0AA3
Selling Points
- 1Ensures safe and efficient operation with robust short-circuit protection.
- 2Simple mounting and configuration for quick setup.
- 3Built with high-quality materials for long-lasting performance.
- 4Suitable for various electrical systems, including residential and commercial use.
- 5Meets international electrical safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

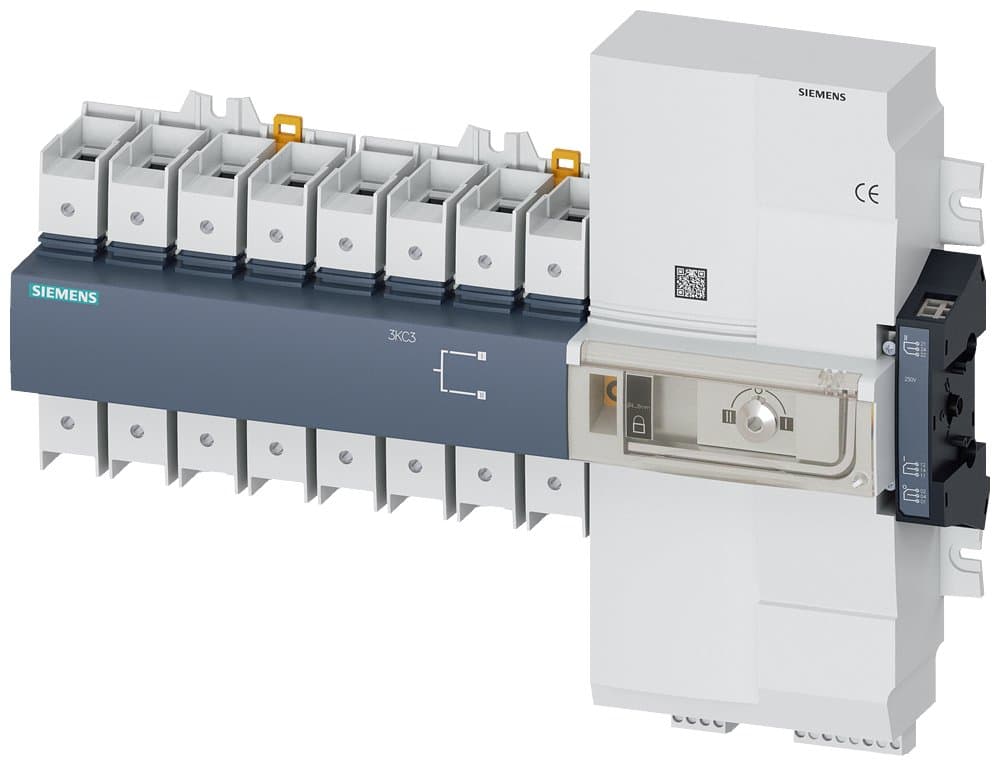

Description | 3KC3 PC-40A-4P Without controller; PC-level; Rated current 40A; 4P remote control transfer switch; Equipped with excitation drive mechanism and integrated controller, additional front operation mechanism, position indication auxiliary contact option | Impact Withstand Voltage (kV) | 6 |
Application Type | AC-33iB [Cage motor and resistive load for AC] | Other | Remote control transfer switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 40 |
Specification | 3KC3 [40-160A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC3424-2AA22-0AA3 |
Specifications may be subject to change without notice
