Product Model
3KC4348-0FA21-0AA3
Selling Points
- 1Control your transfer switch from a distance for enhanced convenience and efficiency.
- 2Handle up to 800 A of current, making it suitable for demanding power distribution applications.
- 3Built with durable materials and designed for reliability in harsh environments.
- 4Ensure continuous operation with fail-safe power supply and stable switch positions.
- 5Compact design with integrated controller and easy wiring options for quick setup on DIN rails or mounting plates.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

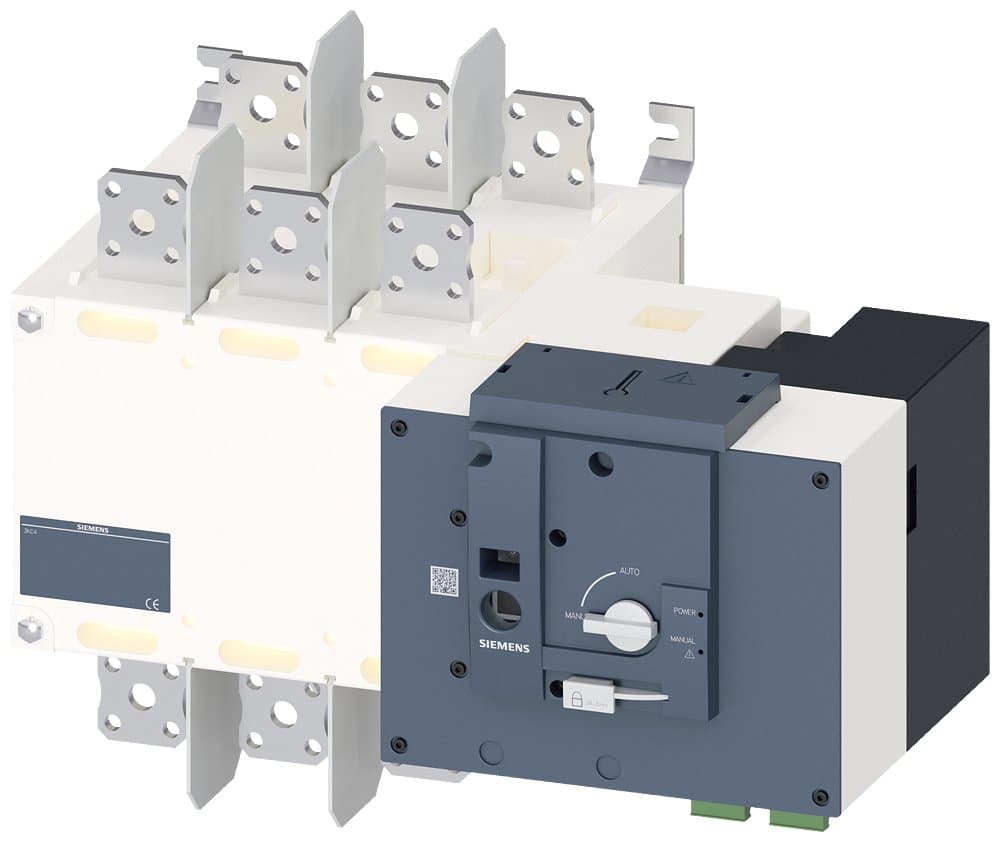

Description | 3KC4 PC-800A-3P Without Controller; PC-level; Rated Current 800A; 3P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indication Auxiliary Contacts Set | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 3 | In(A) | 800 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4348-0FA21-0AA3 |
Specifications may be subject to change without notice
