Product Model

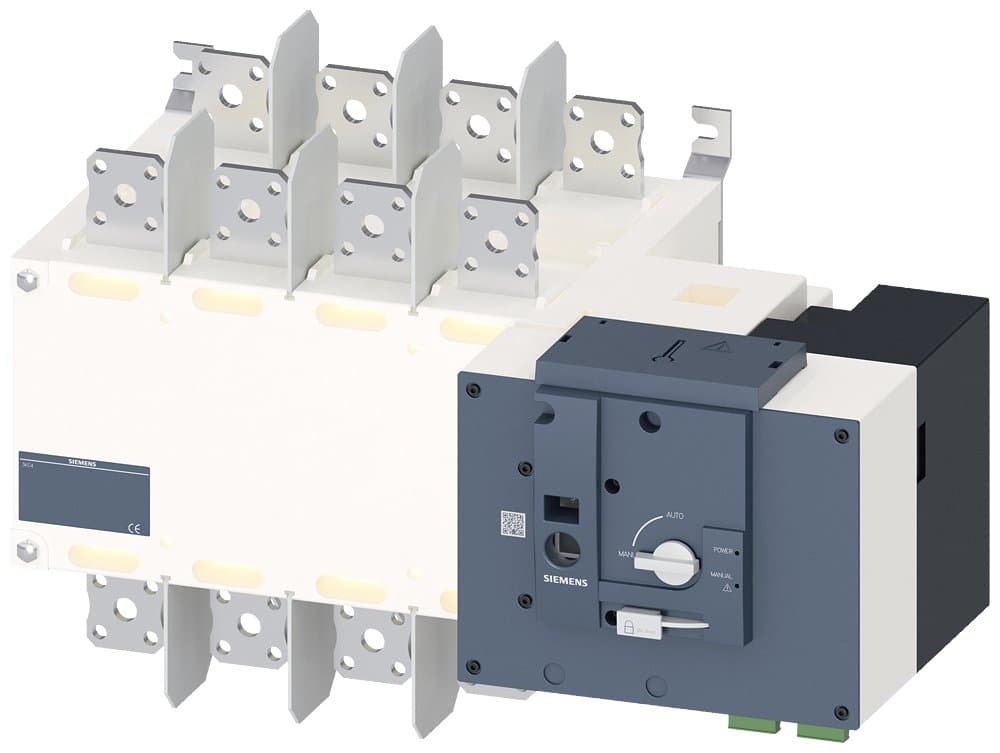

3KC4448-0FA21-0AA3
Selling Points
- 1Remotely operated with a motorized operating mechanism for easy control.
- 2Designed for high current capacity: 800 A at 415 V and 630 A at 690 V.
- 3Compact design with screw mounting and long handle for convenient operation.
- 4Integrated busbar connection for efficient power distribution.
- 5Meets IEC 60947-3 and IEC 60947-6-1 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC4 PC-800A-4P Without Controller; PC-level; Rated Current 800A; 4P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indicating Auxiliary Contacts Set | Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [Three-phase squirrel cage motor and resistive load] | Other | Remote Control Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 800 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4448-0FA21-0AA3 |
Specifications may be subject to change without notice
