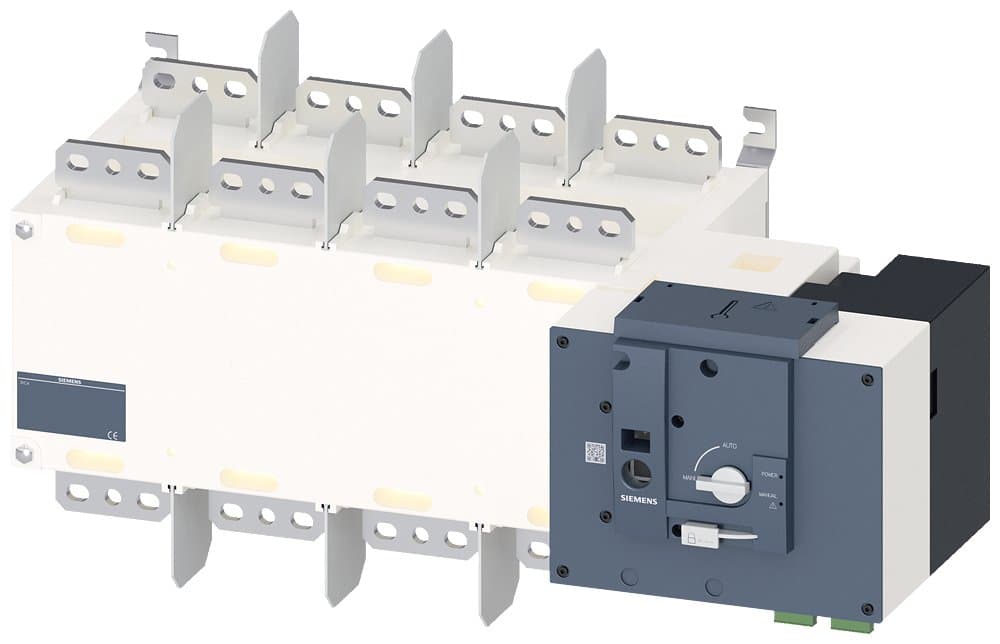

Product Model
3KC4454-0HA21-0AA3
Selling Points
- 1Control the transfer switching equipment from a distance for enhanced convenience and safety.
- 2Handles up to 1600 A with a 4-pole configuration, suitable for demanding power distribution applications.
- 3Built with a motorized operating mechanism and long handle for easy operation and durability.
- 4Simplifies connections with a busbar connection system, reducing installation time and complexity.
- 5Meets IEC 60947-6-1 and IEC 60947-3 standards for reliability and safety in electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC4 PC-1600A-4P Without Controller; PC-level; Rated Current 1600A; 4P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indicating Auxiliary Contacts Set | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 1600 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4454-0HA21-0AA3 |
Specifications may be subject to change without notice
