Product Model

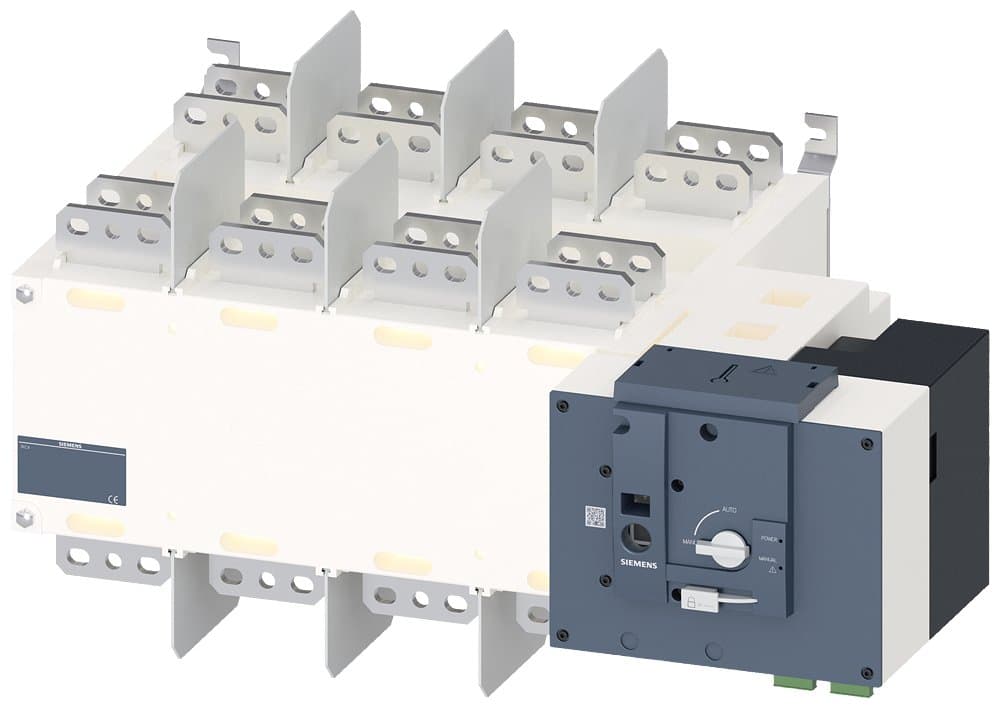

3KC4456-0JA21-0AA3
Selling Points
- 1Remotely operated transfer switching equipment with high current capacity (2000 A).
- 24-pole design for efficient power distribution and reliability.
- 3Motorized operating mechanism with a long handle for easy operation.
- 4Screw mounting and busbar connection for secure installation.
- 5Compliant with RoHS directive and WEEE regulations for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC4 PC-2000A-4P Without Controller; PC-level; Rated Current 2000A; 4P Remote Operation Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Configuration with One Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Operation Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 2000 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4456-0JA21-0AA3 |
Specifications may be subject to change without notice
