Product Model

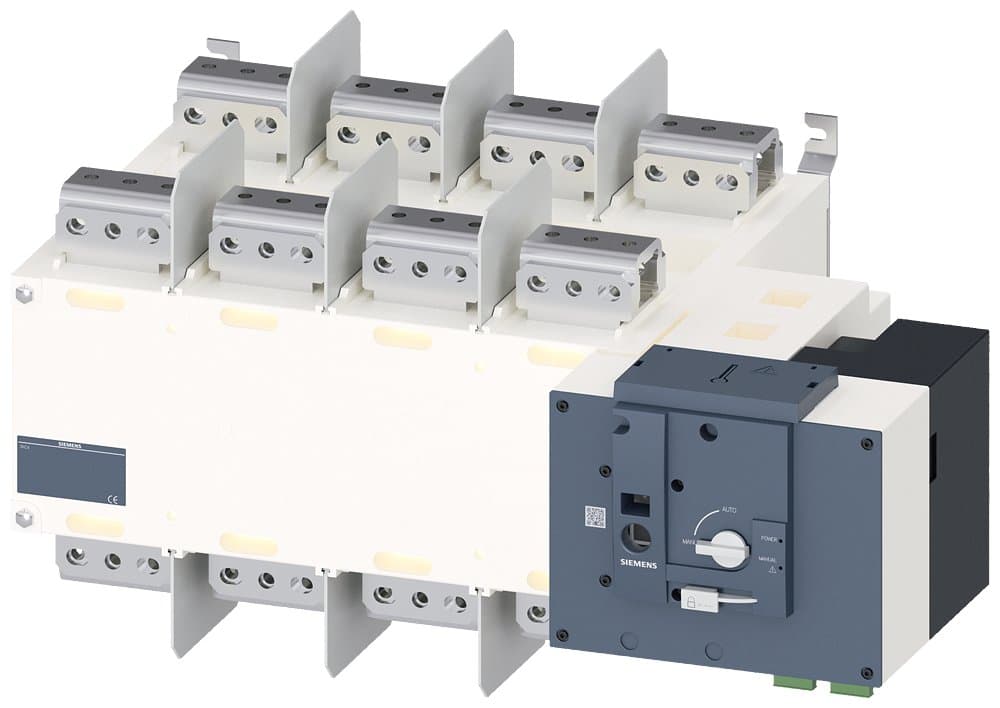

3KC4460-0JA21-0AA3
Selling Points
- 1High-Performance Electrical Switching: Designed for efficient power distribution and control.
- 2Robust Construction: Built with durable materials for long-lasting performance.
- 3Easy Installation: Simple and safe installation process with integrated solutions.
- 4Advanced Safety Features: Electrical and mechanical interlocking for maximum safety.
- 5Versatile Application: Suitable for various industrial applications with customizable settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC4 PC-3200A-4P Without Controller; PC-level; Rated Current 3200A; 4P Remote Control Operation Transfer Switch; Equipped with Motorized Operating Mechanism, Additional Front Operation Mechanism, Standard Configuration of One Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Operation Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 3200 |
Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC4460-0JA21-0AA3 |
Specifications may be subject to change without notice
