Product Model

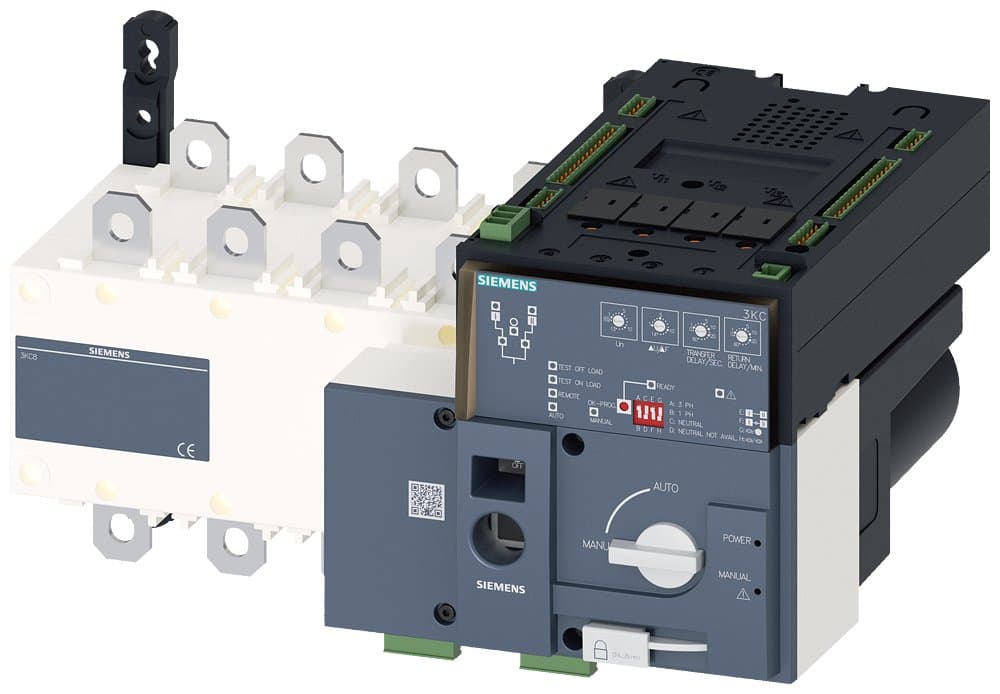

3KC8438-0CA22-0GA3
Selling Points
- 1High Current Capacity: Handles up to 250 A of main current.
- 2Automatic Operation: Features an automatic transfer switching mechanism.
- 3Motorized Mechanism: Equipped with a motorized operating mechanism for smooth operation.
- 4Busbar Connection: Includes a busbar connection for easy installation.
- 5Durable Design: Designed for long service life with 7,000 operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC8 PC-250A-4P Basic Type; PC-level; Rated Current 250A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration with One Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 250 |
Specification | 3KC8 [250-3200A] | Control Type | Basic |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC8438-0CA22-0GA3 |
Specifications may be subject to change without notice
