Product Model

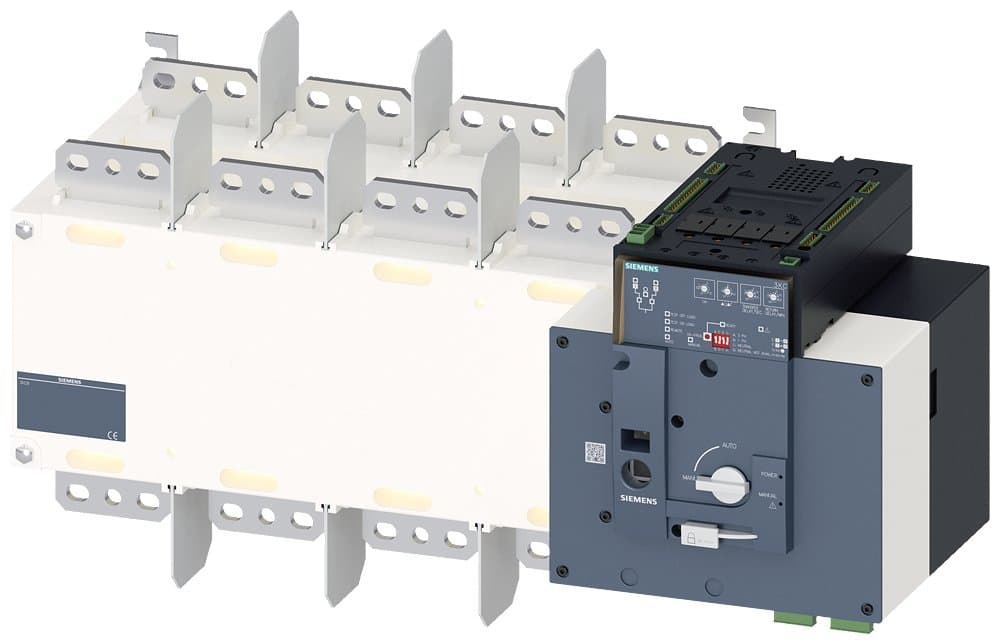

3KC8454-0HA22-0GA3
Selling Points
- 1Automatic Operation: The 3KC8454-0HA22-0GA3 features an automatic transfer switching mechanism, ensuring seamless operation in critical power systems.
- 2High Current Ratings: Designed to handle high currents, with Iu up to 1600 A and Ie at AC-33 B up to 1000 A at 415 V.
- 3Motorized Mechanism: Equipped with a motorized operating mechanism for easy and precise control, including a long handle for manual operation.
- 4Screw Mounting: Offers screw mounting for secure installation, ensuring stability in various environments.
- 5Busbar Connection: Features busbar connections for efficient electrical connections, enhancing overall system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC8 PC-1600A-4P Basic Type; PC-level; Rated Current 1600A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration of a Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 1600 |
Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC8454-0HA22-0GA3 |
Specifications may be subject to change without notice
