Product Model

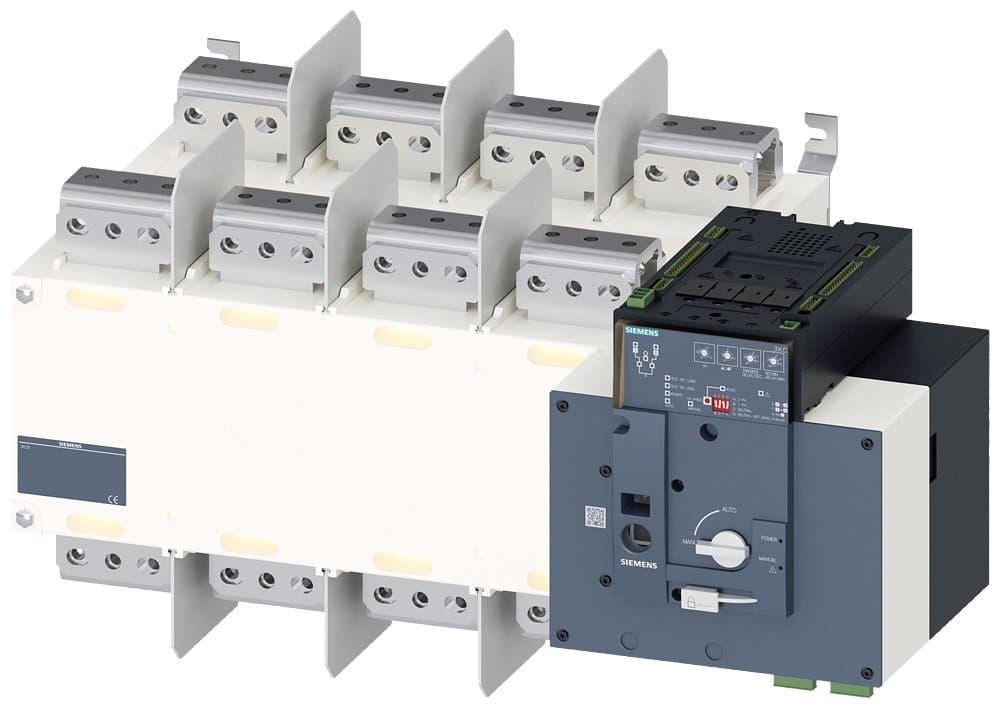

3KC8460-0JA22-0GA3
Selling Points
- 1Automatically switches power with high reliability.
- 2Designed for 4-pole configurations with 3200 A current capacity.
- 3Features a motorized operating mechanism with a long handle.
- 4Includes screw mounting and busbar connection for easy installation.
- 5Compliant with RoHS directive since April 30, 2016.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Description | 3KC8 PC-3200A-4P Basic Type; PC-level; Rated Current 3200A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration of a Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
System Voltage | 415VAC | Control Voltage | 230VAC |
Number of Poles | 4 | In(A) | 3200 |
Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
Type | PC-level | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KC8460-0JA22-0GA3 |
Specifications may be subject to change without notice
