Product Model

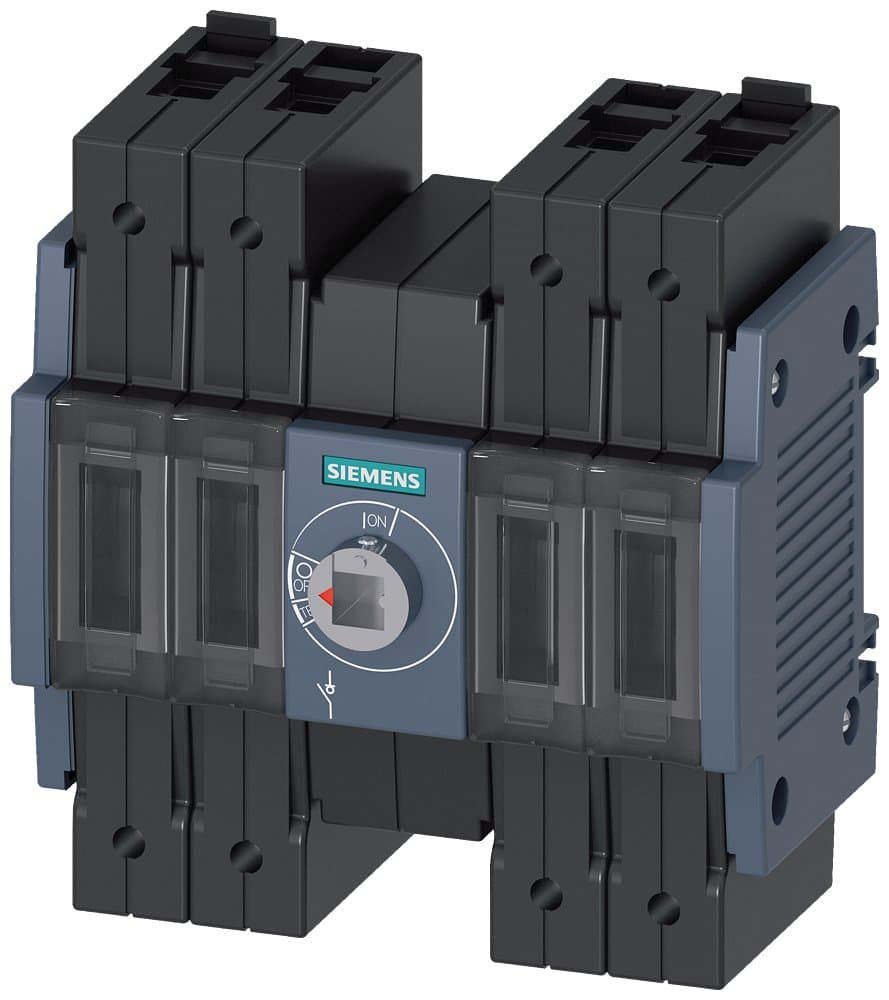

3KD2240-2ME20-0
Selling Points
- 1High current rating of 32 A for efficient circuit protection.
- 24-pole design for versatile application in electrical systems.
- 3Robust front operating mechanism for reliable operation.
- 4Compact size (75x75 mm) for space-saving installations.
- 5Compliance with RoHS directive since 2009 for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated current 32A, 4P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, box terminal, |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 32 |
Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD2240-2ME20-0 |
Specifications may be subject to change without notice
