Product Model

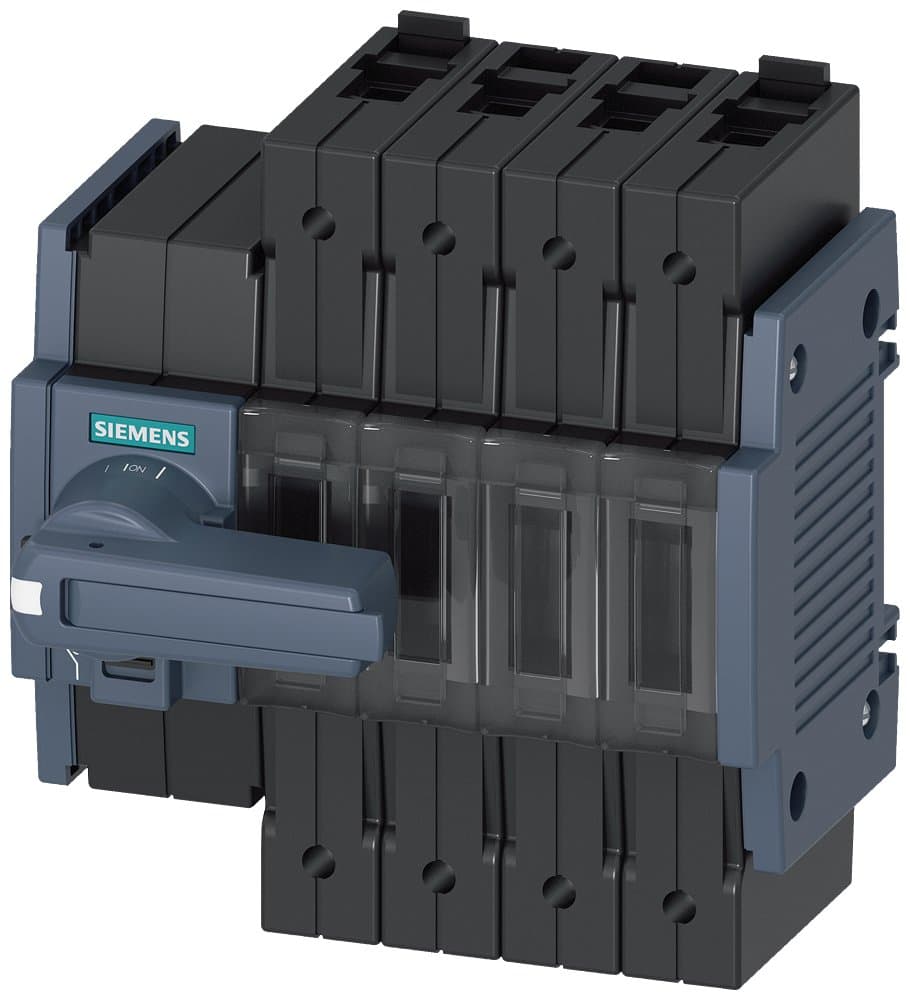

3KD2242-2ME10-0
Selling Points
- 1Ensures safe and reliable operation in electrical installations.
- 2Optimized for 4-pole applications with a 32 A rating.
- 3Easy to operate from the front, enhancing user convenience.
- 4Includes a direct operating mechanism for seamless functionality.
- 5Durable and easy-to-use terminal design for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated current 32A, 4P, kit type, front operation, with direct front operation mechanism, grey handle, operating mechanism on the left side of the switch, surface mounting, box terminal, |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 32 |
Specification | 3KD_Specification 1 [16-100A] | Switch Type | Kit type, front operation, with direct front operation mechanism, grey handle, operating mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD2242-2ME10-0 |
Specifications may be subject to change without notice
