Product Model

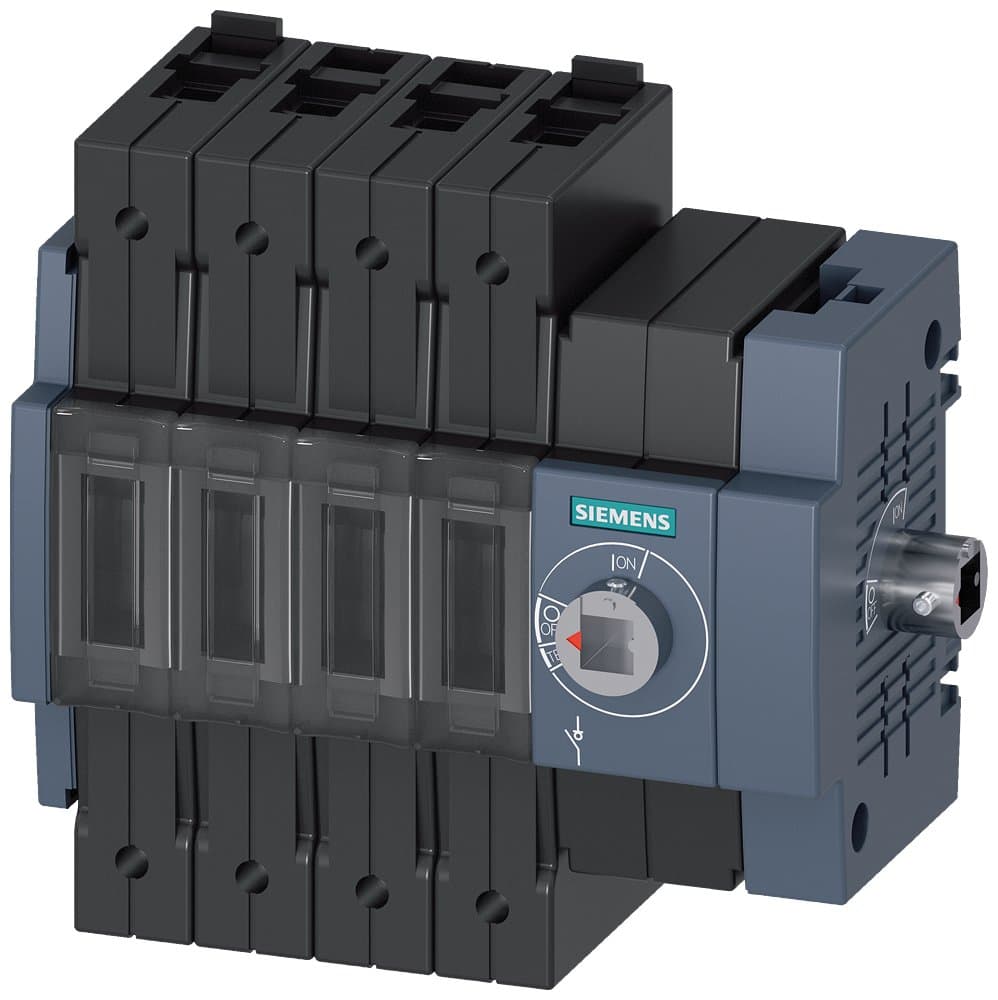

3KD2244-2ME40-0
Selling Points
- 1High Current Rating: Handles up to 32A for efficient electrical control.
- 2Reliable Operation: Features a 4-pole lateral operating mechanism for precise disconnection.
- 3Durable Construction: Built to withstand demanding industrial environments.
- 4Easy Installation: Basic unit without handle, simplifying integration into your system.
- 5Global Availability: Worldwide delivery options for convenient access to your needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 32A; 4P; Basic unit without handle, side operation mechanism on the right side of the switch; Surface mounting; Box terminal |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 32 |
Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD2244-2ME40-0 |
Specifications may be subject to change without notice
