Product Model

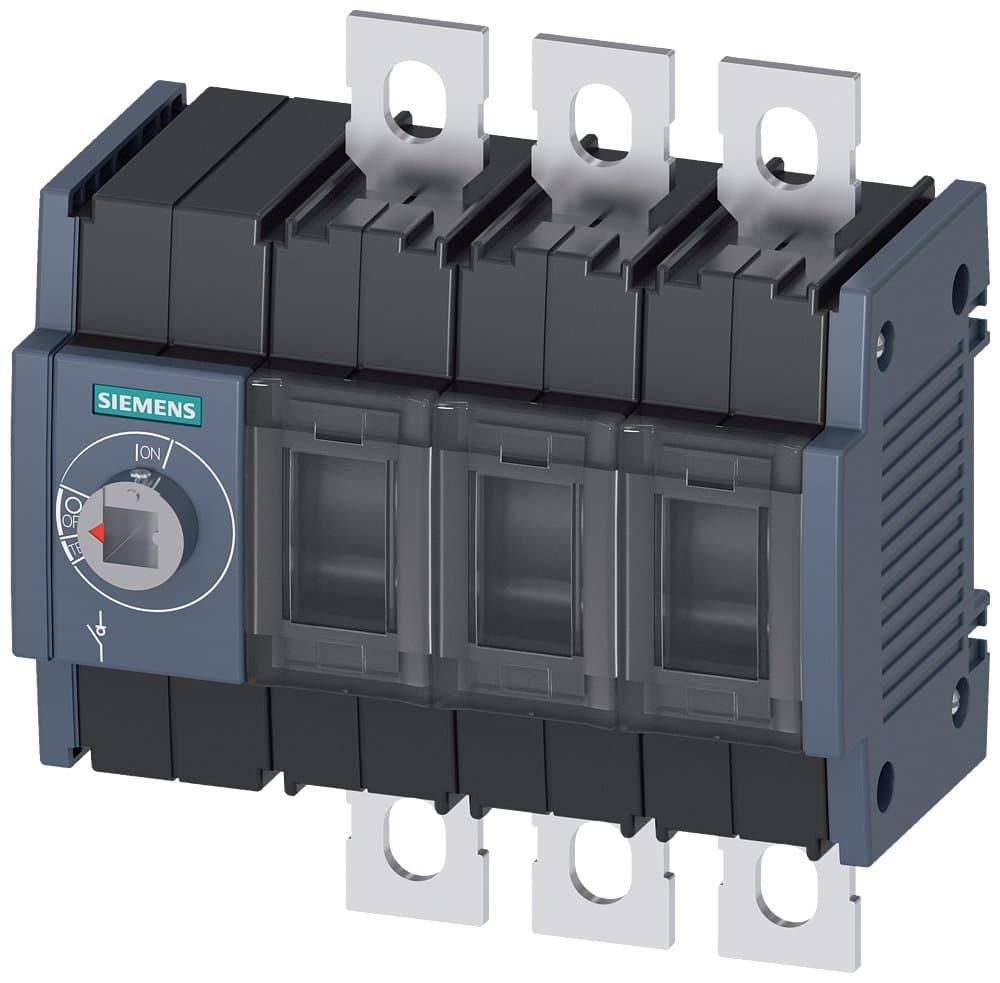

3KD2830-0NE10-0
Selling Points
- 1Provides a safety isolating function and isolating distance in low-voltage circuits.
- 2Features a lockable mechanism with up to 3 padlocks for added security.
- 3Easy to operate from the front, enhancing user convenience.
- 4Suitable for applications requiring up to 80 A of current.
- 5Trusted Siemens product, ensuring high standards of performance and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 80A, 3P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, flat connection |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 80 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD2830-0NE10-0 |
Specifications may be subject to change without notice
