Product Model

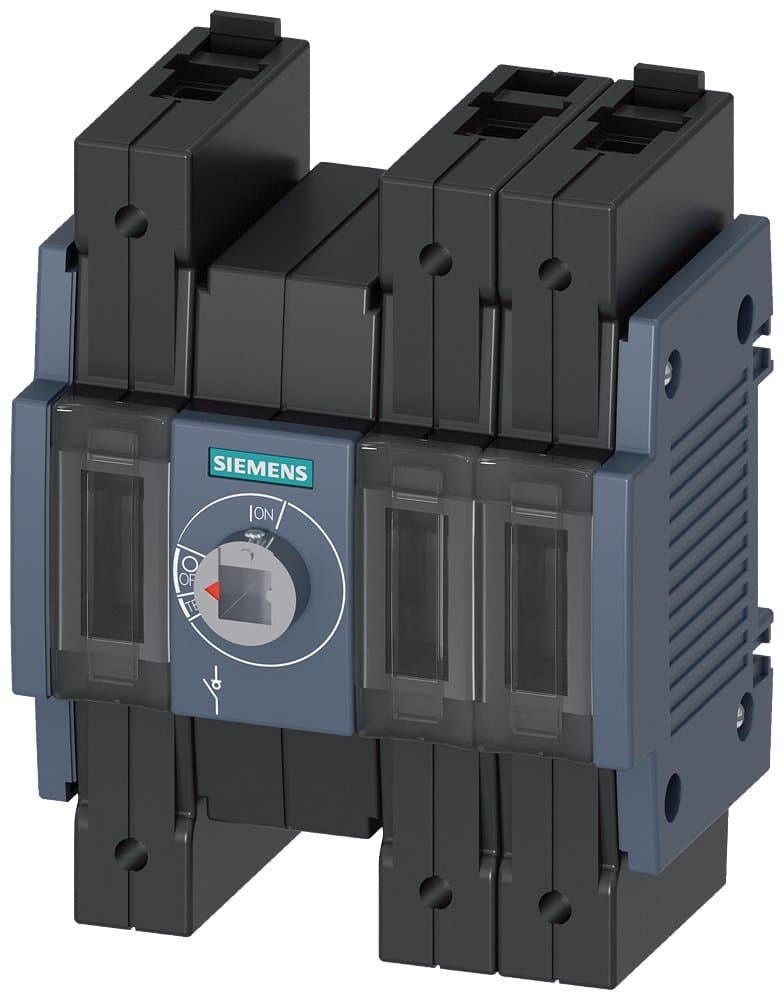

3KD2830-2ME20-0
Selling Points
- 1Precision Control: Ensures precise operation with a standard tolerance compensation.
- 2Robust Design: Built with a robust handle size of 55 mm for durability.
- 3Compact Size: Measures 75x75 mm with an 8x8 mm shaft, ideal for space-constrained environments.
- 4Easy Installation: Simple mounting options available for seamless integration.
- 5Long-Lasting Performance: Designed to provide long-lasting performance in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 80A; 3P; Basic unit without handle, front operation mechanism located at the center of the switch; Box terminal |
Mounting Type | Surface Mount | Terminal Type | Box Terminal |
Poles | 3P | In(A) | 80 |
Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD2830-2ME20-0 |
Specifications may be subject to change without notice
