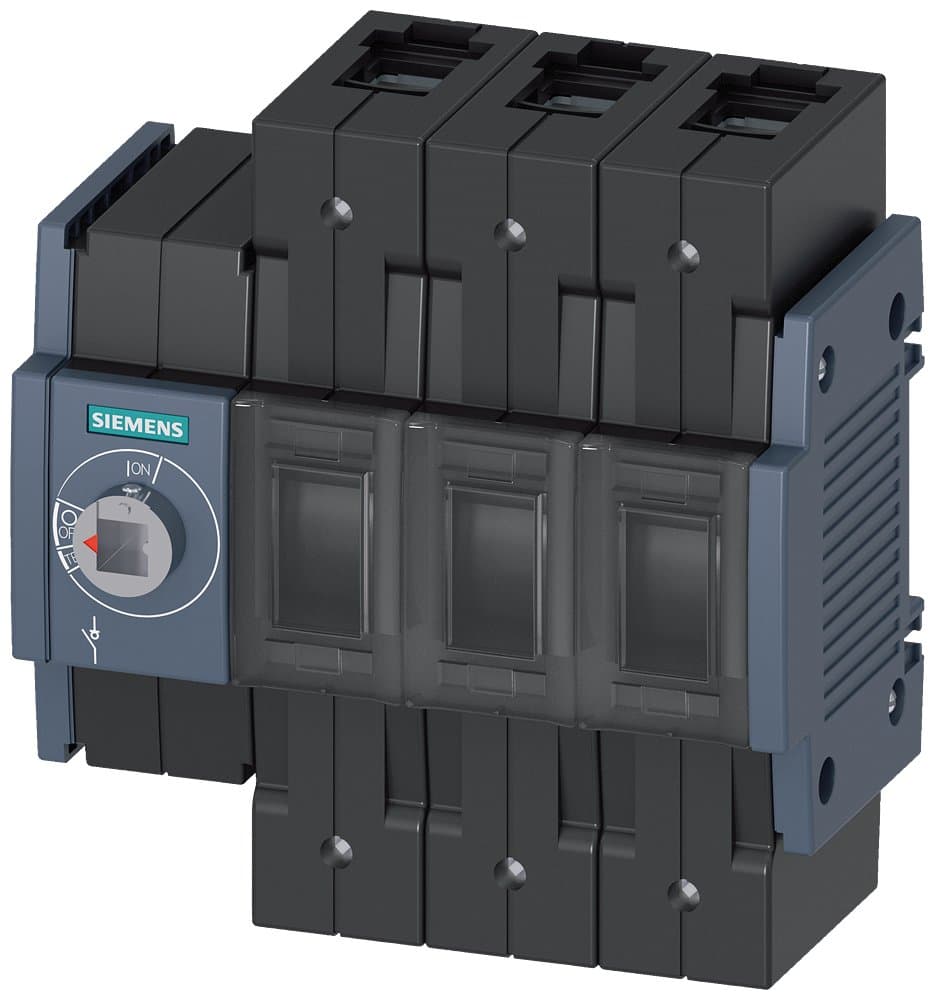

Product Model
3KD2830-2NE10-0
Selling Points
- 1Reliable protection from electrical accidents with a safety isolating function.
- 2Rugged technology ensures high system availability in industries and infrastructure.
- 3Suitable for a wide range of applications, including wind power and solar plants.
- 4Simple retrofitting of additional functions with an extensive range of accessories.
- 5Quick installation on standard mounting rails with frame sizes up to 200 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 2; Rated current 80A, 3P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, box terminal, |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 3P | In(A) | 80 |
Specification | 3KD_Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD2830-2NE10-0 |
Specifications may be subject to change without notice
