Product Model

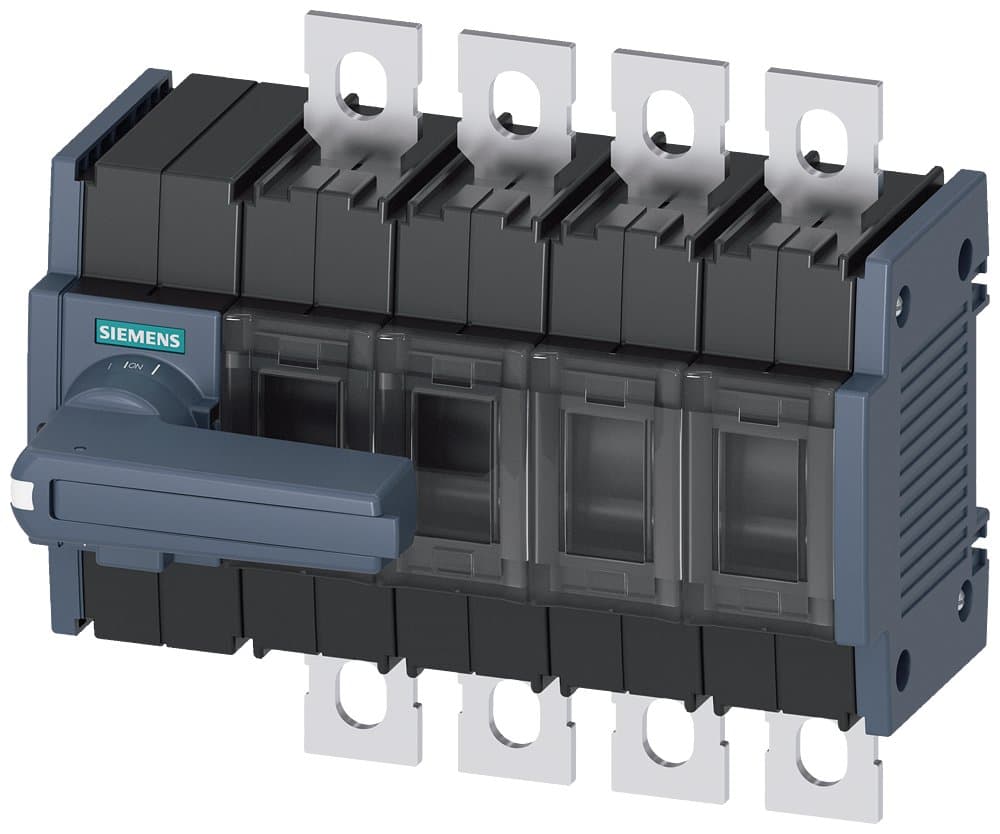

3KD2842-0NE10-0
Selling Points
- 1High Current Rating: Handles up to 80 A for reliable power distribution.
- 2Compact Design: Size 2 switch disconnector ideal for space-constrained installations.
- 3Front Operating Mechanism: Easy access and operation with a left-hand mechanism.
- 4Phase Barriers Included: Ensures safe and secure electrical connections.
- 5Compliance with Standards: Meets eClass 5.1, eClass 6, and ETIM 7 standards for quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 2; Rated current 80A, 4P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mounting, flat connection, |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 80 |
Specification | 3KD_Specification 2 [80-125A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD2842-0NE10-0 |
Specifications may be subject to change without notice
