Product Model

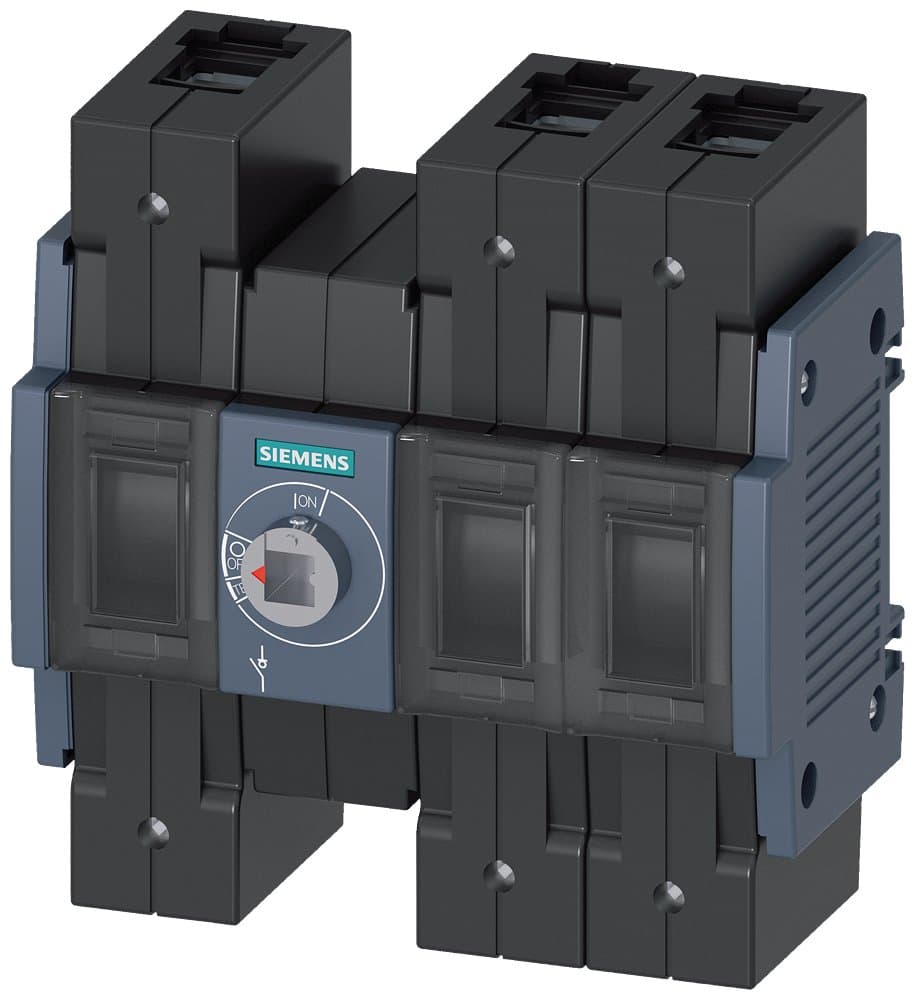

3KD3030-2NE20-0
Selling Points
- 1High Current Rating: Handles up to 100 A with a 3-pole configuration.
- 2Compact Design: Measures 75x75 mm with an 8x8 mm shaft, perfect for space-constrained installations.
- 3Tolerance Compensation: Ensures precise operation with built-in tolerance compensation.
- 4Front Operating Mechanism: Easy manual operation from the front for quick switching.
- 5Robust Construction: Built with durable materials for long-lasting performance in electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 100A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, box terminal |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 3P | In(A) | 100 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3030-2NE20-0 |
Specifications may be subject to change without notice
