Product Model

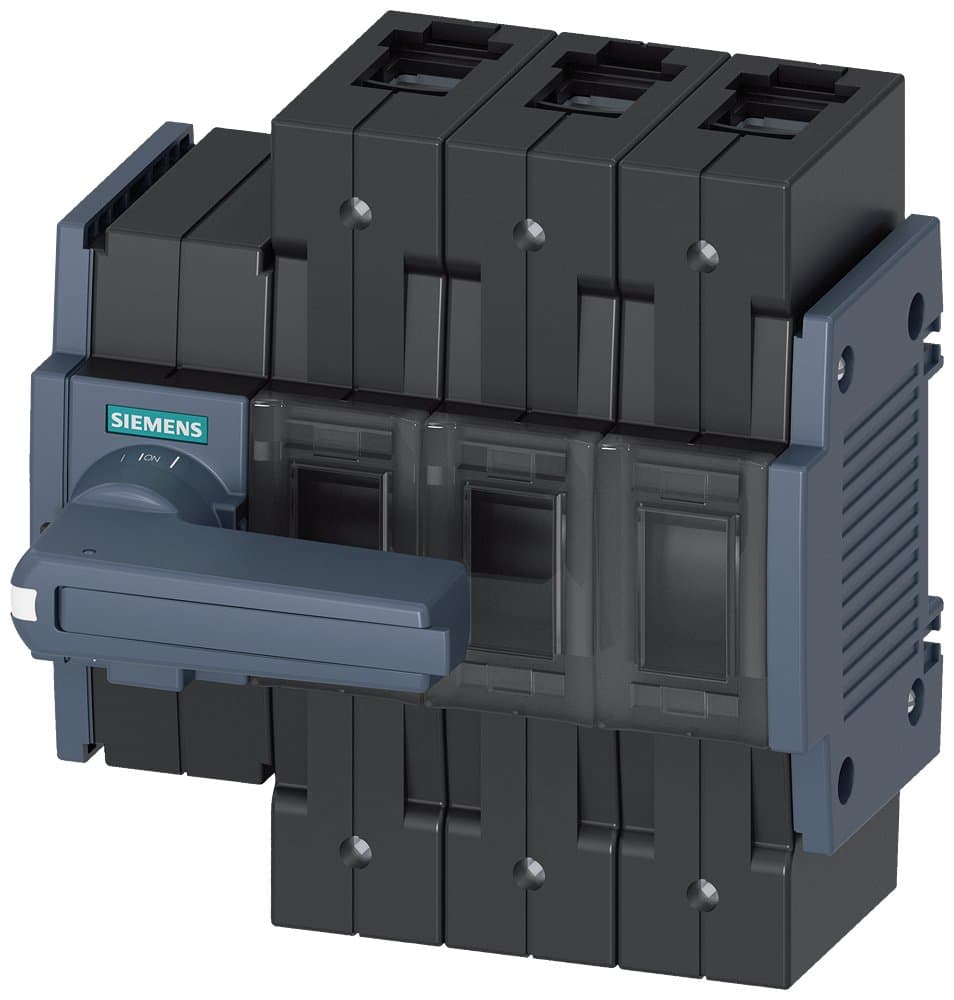

3KD3232-2NE10-0
Selling Points
- 1Designed to handle 125 A with a 3-pole configuration, ensuring reliable power distribution.
- 2Front operating mechanism for easy access and control, reducing operational downtime.
- 3Protects users from electric shock by allowing permanent switch-on and switch-off under load.
- 4Suitable for floor mounting, standard mounting rails, and front mounting in panel doors.
- 5Meets DIN VDE 0100-200 and UL 508 standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 125A, 3P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, box terminal, |
Mounting Type | Surface Mount | Terminal Type | Box Terminal |
Number of Poles | 3P | In(A) | 125 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3232-2NE10-0 |
Specifications may be subject to change without notice
