Product Model

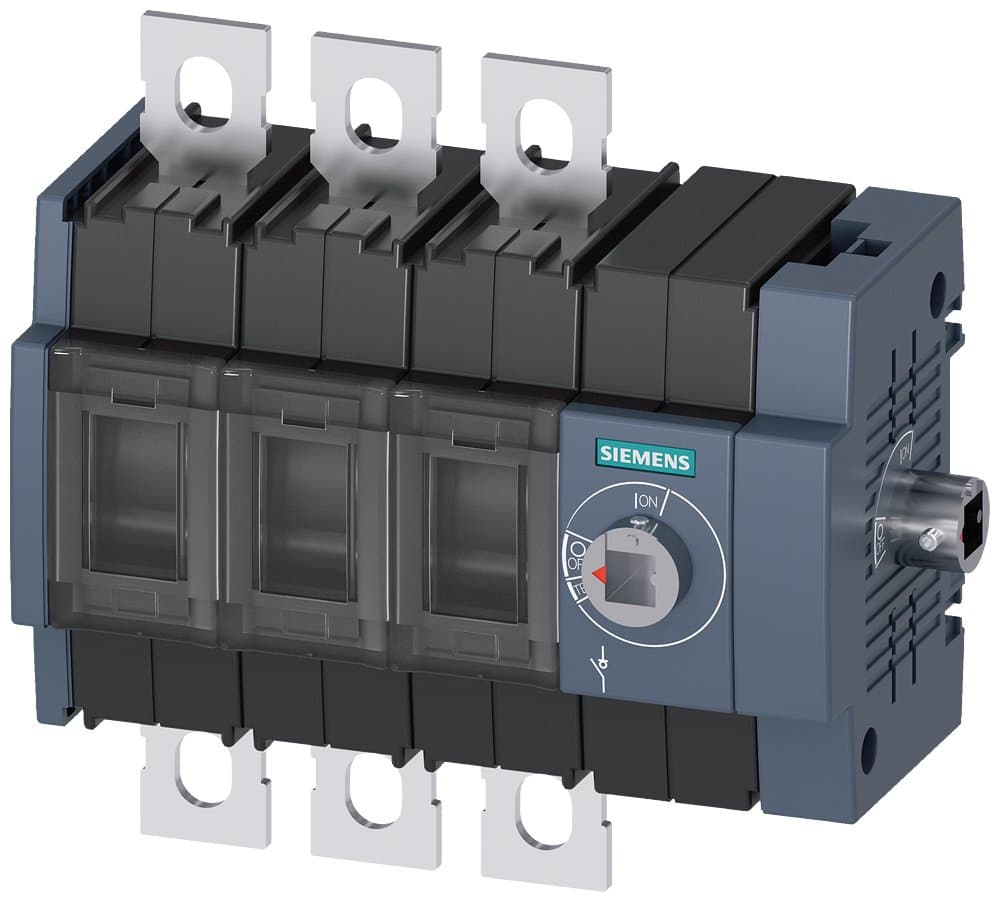

3KD3234-0NE40-0
Selling Points
- 1High current rating of 125A for reliable electrical protection.
- 2Compact size 2 design for space-efficient installations.
- 3Lateral operating mechanism for easy and safe operation.
- 4Basic unit without handle, flat terminal, and phase barriers included.
- 5EAN code: 4001869514925 for easy identification and inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 125A; 3P; Basic unit without handle, side operation mechanism located on the right side of the switch; Surface mount; Flat connection |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Poles | 3P | In(A) | 125 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD3234-0NE40-0 |
Specifications may be subject to change without notice
