Product Model

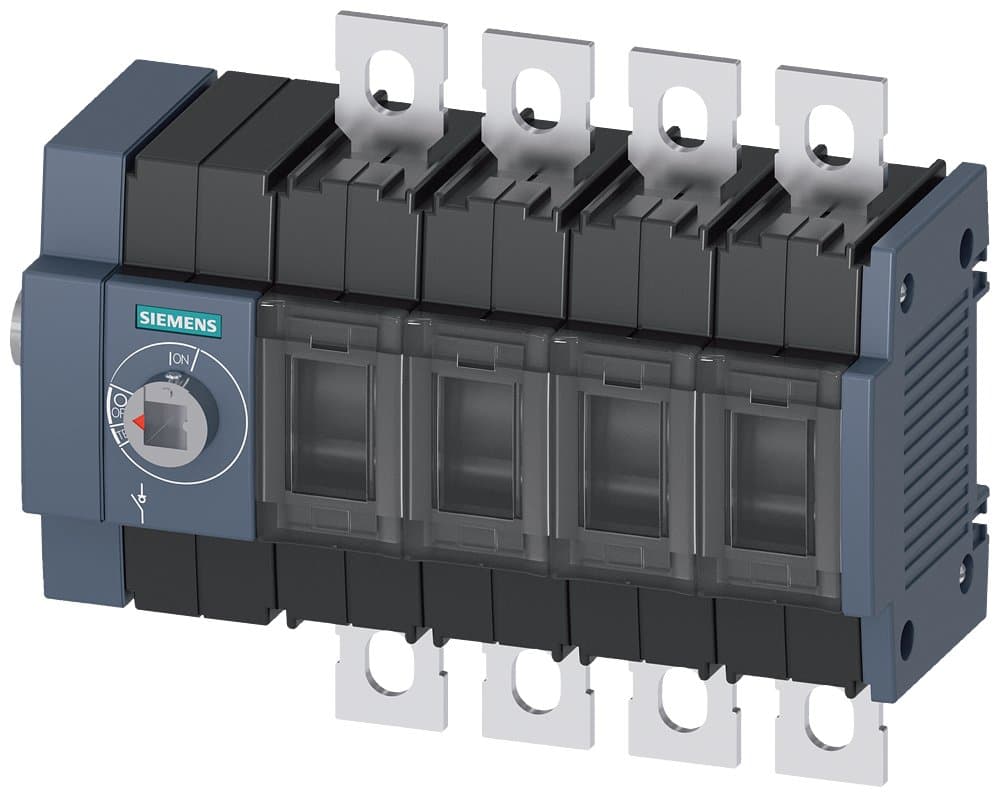

3KD3244-0NE10-0
Selling Points
- 1High Current Rating: Handles up to 125 A for reliable power distribution.
- 2Compact Design: Suitable for space-limited installations with a compact design.
- 3Lateral Operating Mechanism: Easy to operate with a lateral mechanism for efficient switching.
- 44-Pole Configuration: Supports 4-pole configurations for versatile electrical applications.
- 5Enhanced Safety Features: Ensures user safety with permanent switch-on and switch-off under load.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 125A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Surface mounting; Flat connection |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 125 |
Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3244-0NE10-0 |
Specifications may be subject to change without notice
