Product Model

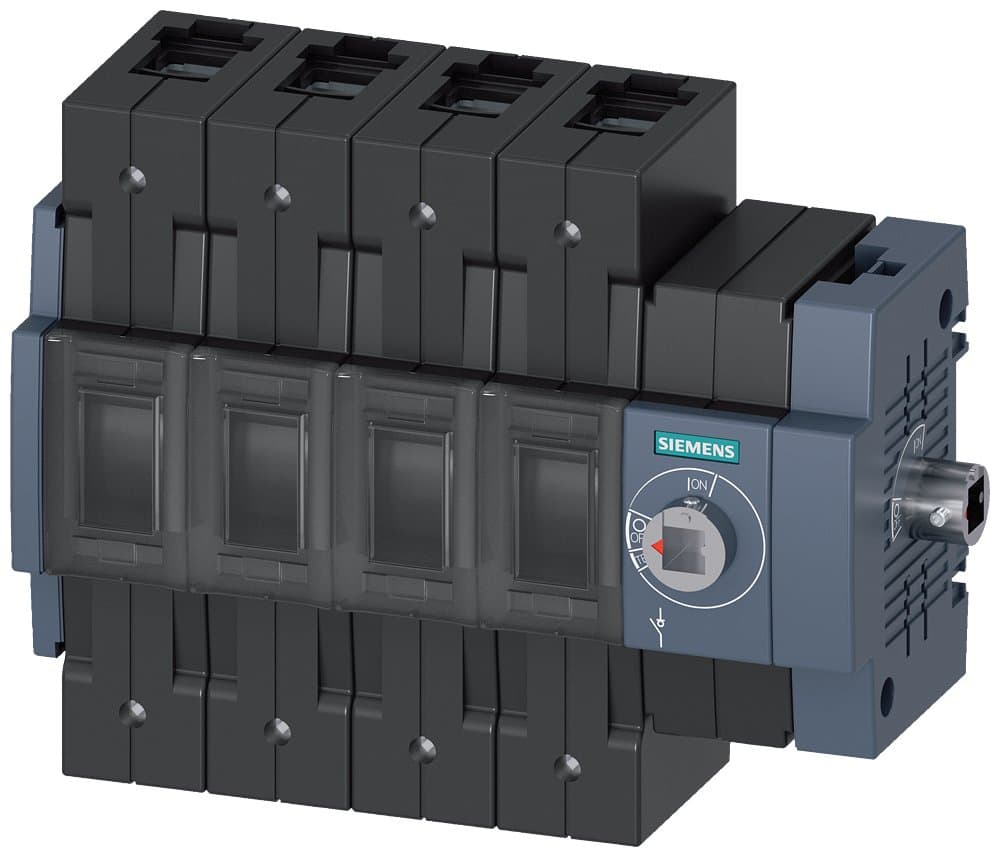

3KD3444-2NE40-0
Selling Points
- 1High performance and reliability in electrical installations.
- 2160 A capacity with a 4-pole design for robust switching.
- 3Lateral operating mechanism for easy access and control.
- 4Compact design suitable for space-limited applications.
- 5Meets UL 508 and UL60947-4-1 standards for safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 160A; 4P; Basic unit without handle, side operation mechanism on the right side of the switch; Surface mounting; Box terminal |
Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
Number of Poles | 4P | In(A) | 160 |
Specification | 3KD Specification 2 [160-250A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3444-2NE40-0 |
Specifications may be subject to change without notice
