Product Model

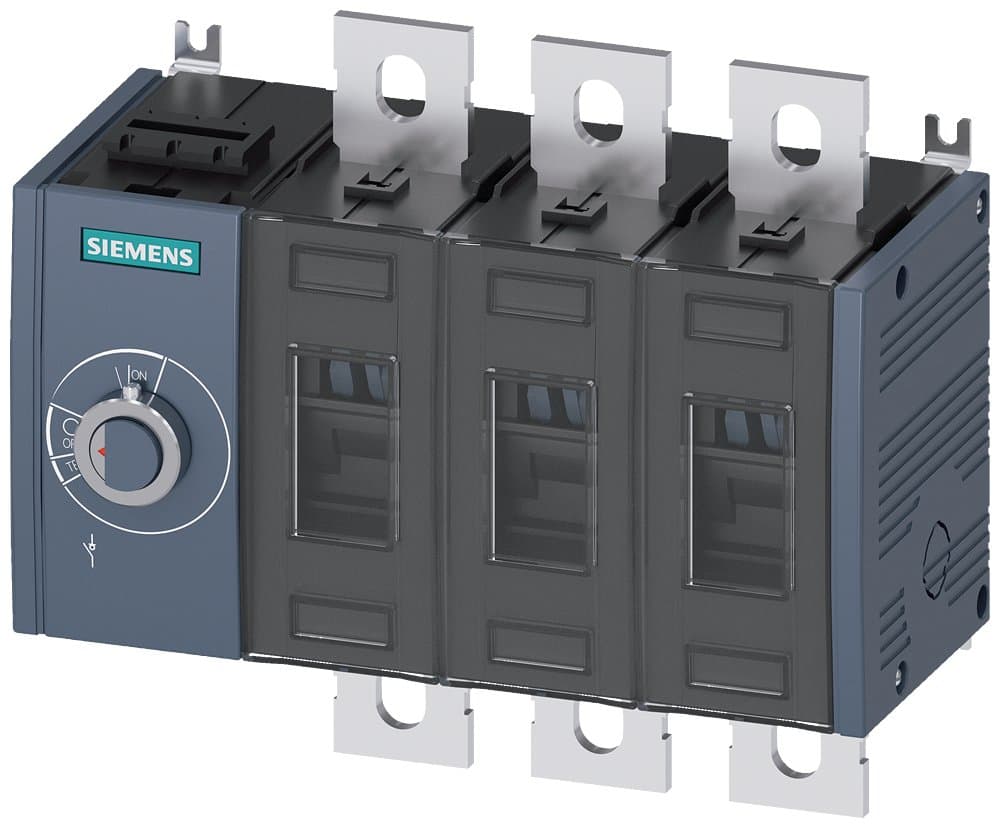

3KD3634-0PE10-0
Selling Points
- 1High current rating up to 200 A.
- 2Robust IP00/IP20 protection for safe operation.
- 3Lateral operating mechanism for easy access.
- 4Suitable for main switch, switch disconnector, and EMERGENCY OFF applications.
- 5Durable with a mechanical service life of 15,000 operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 200A; 3P; Basic unit without handle, side operation mechanism located on the left side of the switch; Surface Mount; Flat Connection |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 200 |
Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD3634-0PE10-0 |
Specifications may be subject to change without notice
