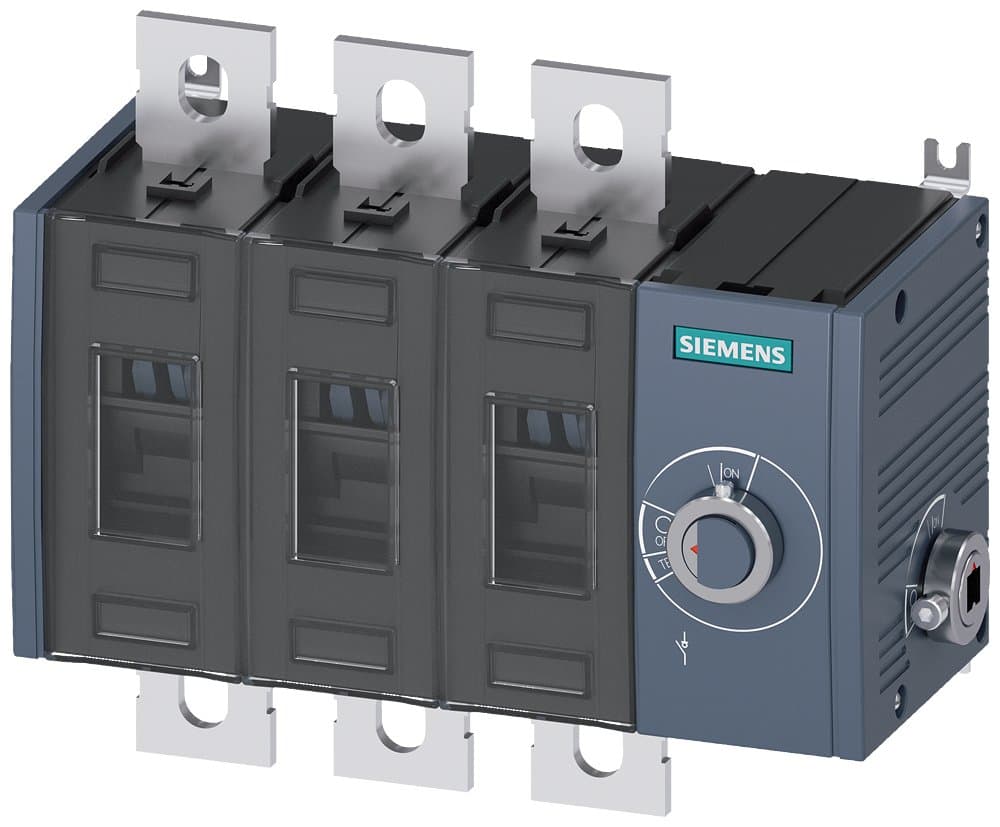

Product Model
3KD3634-0PE40-0
Selling Points
- 1Handles up to 200A of continuous current.
- 2Surface mount installation with dimensions of 164mm x 198.5mm x 95mm.
- 3Designed for 10,000 mechanical service life and 15,000 electrical endurance cycles.
- 4Meets IP00 and IP20 protection classes, ensuring reliable operation in various environments.
- 5Suitable for main switches, switch disconnectors, and maintenance/repair switches.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 3; Rated current 200A, 3P, basic unit without handle, side operation mechanism on the right side of the switch, surface mounting, flat connection |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 200 |
Specification | 3KD Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD3634-0PE40-0 |
Specifications may be subject to change without notice
