Product Model

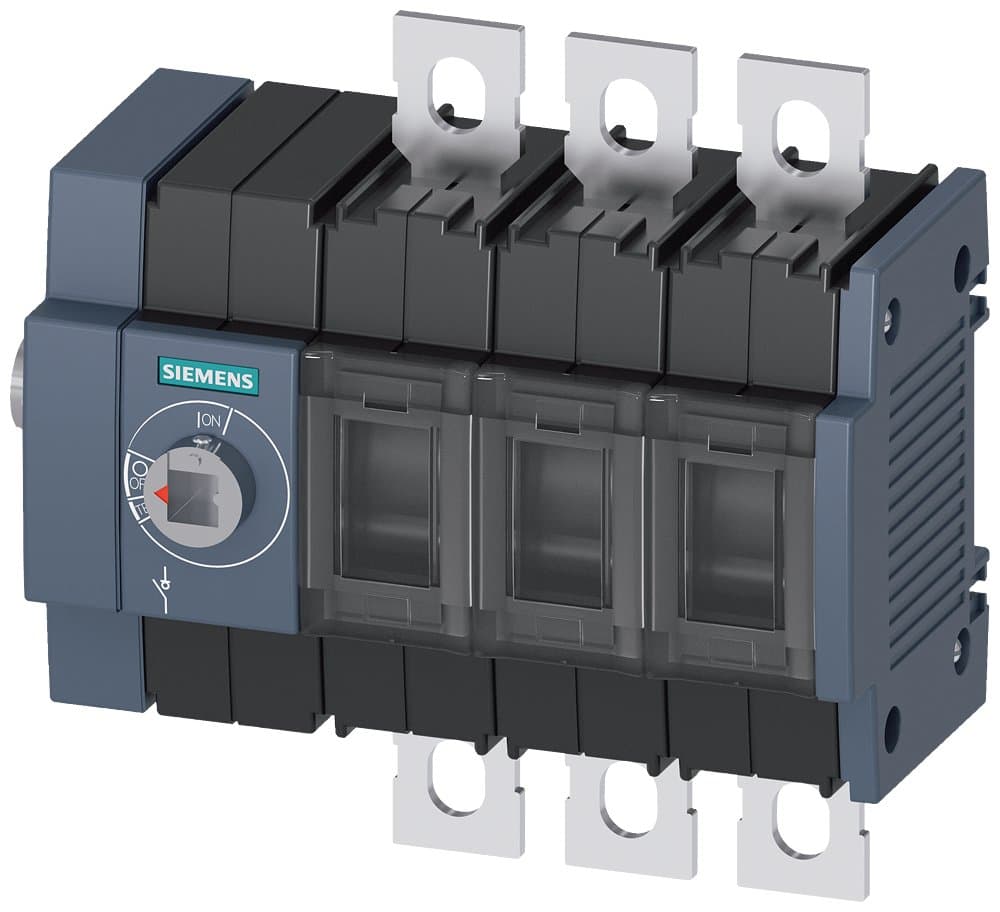

3KD3834-0NE10-0
Selling Points
- 1Compact design for space-saving installations.
- 2Enhanced touch protection for user safety.
- 3Multiple operating mechanisms for versatile use.
- 4Suitable for AC applications up to 690 V and DC applications up to 1200 V.
- 5Meets IEC 60947-1 and IEC 60947-3 standards for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 250A; 3P; Basic unit without handle, side operation mechanism located on the left side of the switch; Flat connection |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 250 |
Specification | 3KD Specification 2 [160-250A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD3834-0NE10-0 |
Specifications may be subject to change without notice
