Product Model

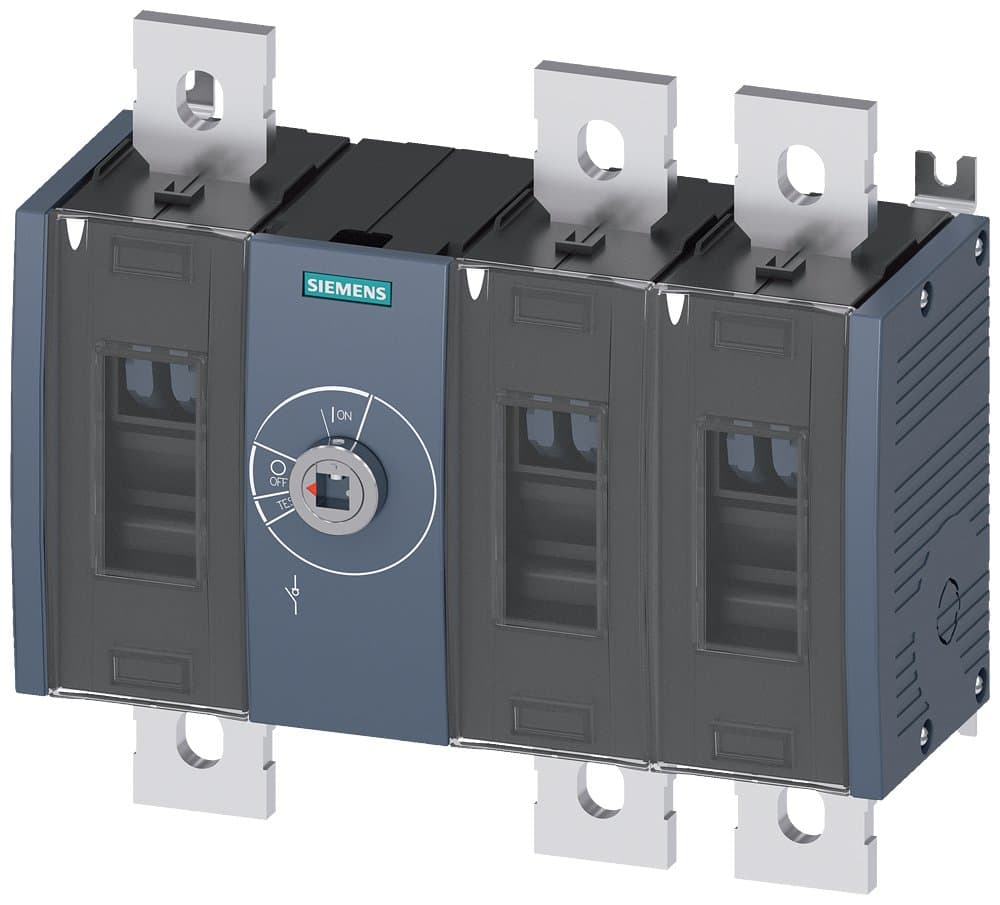

3KD4830-0QE20-0
Selling Points
- 1Reliable protection from electrical accidents with robust design.
- 2High system availability due to rugged technology.
- 3Wide range of applications with variable connection and operating mechanism types.
- 4Simple retrofitting of additional functions with extensive accessories.
- 5Quick installation on standard mounting rails for efficient engineering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 4; Rated current 800A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, flat connection, |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 800 |
Specification | 3KD_Specification 4 [500-1000A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD4830-0QE20-0 |
Specifications may be subject to change without notice
