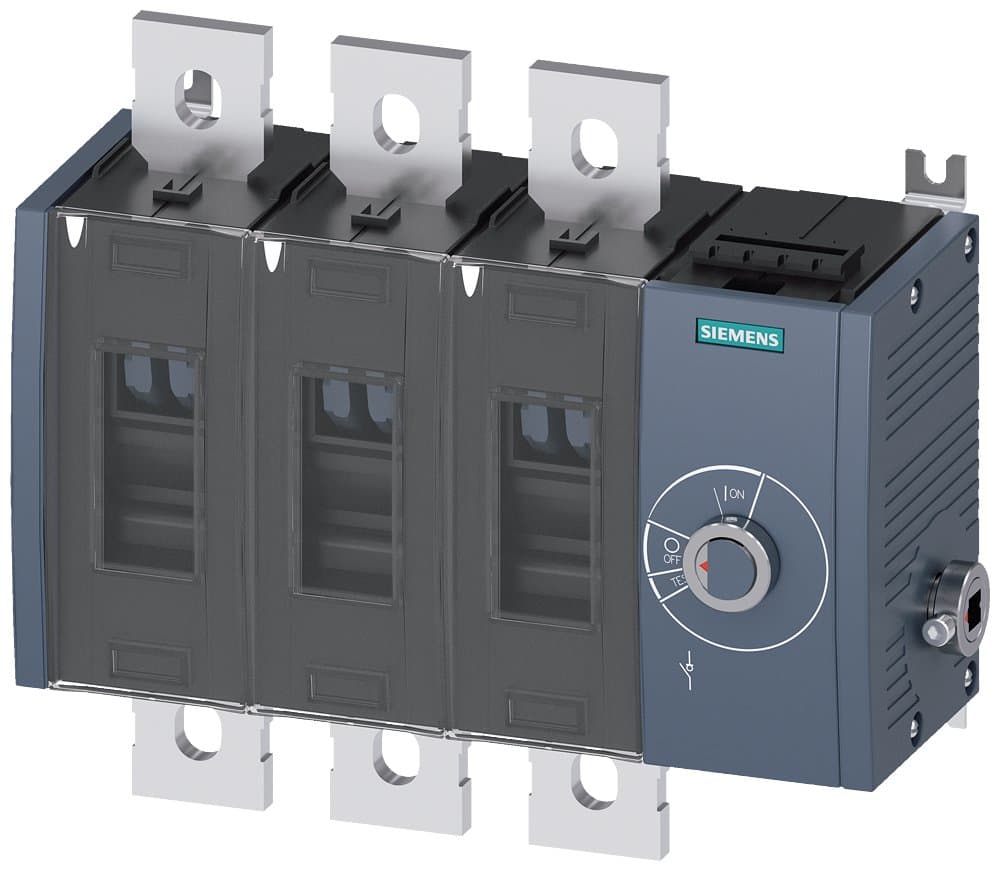

Product Model
3KD4834-0QE40-0
Selling Points
- 1High current capacity up to 800 A.
- 2Compact design for space-efficient installations.
- 33-pole configuration for versatile electrical distribution.
- 4Side operating mechanism for easy access and control.
- 5Meets UL standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD_Specification 4; Rated current 800A, 3P, basic unit without handle, side operation mechanism on the right side of the switch, surface mount, flat connection, |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 800 |
Specification | 3KD_Specification 4 [500-1000A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD4834-0QE40-0 |
Specifications may be subject to change without notice
