Product Model

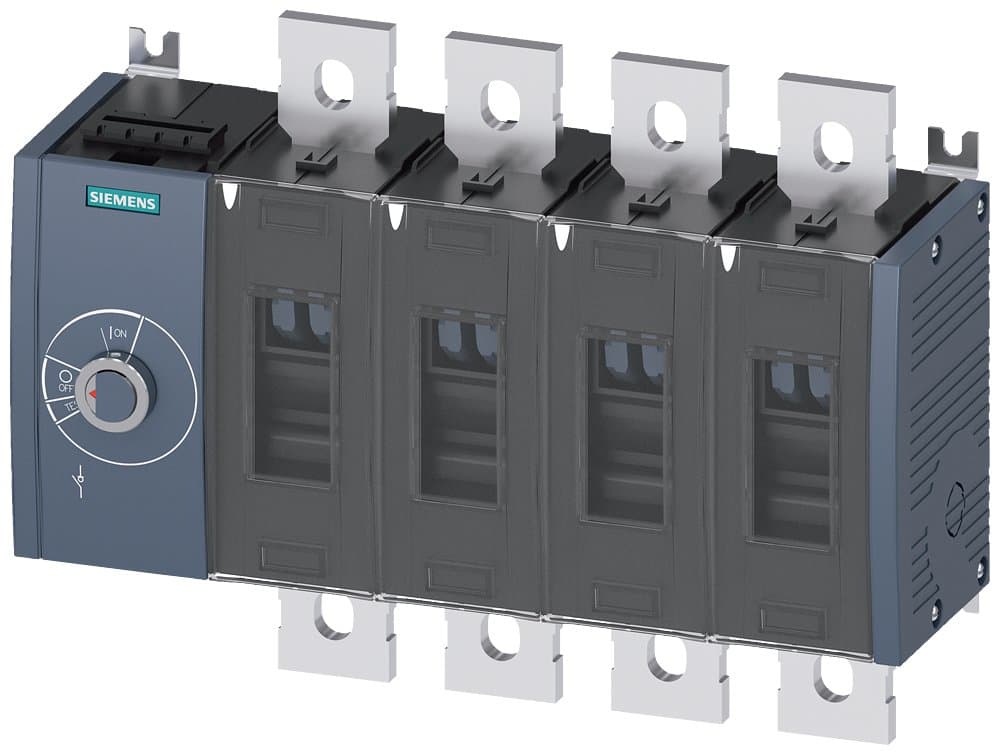

3KD4844-0QE10-0
Selling Points
- 1High current rating: 800 A for reliable operation.
- 2Compact design: Size 4 for efficient use in space-constrained areas.
- 3Lateral operating mechanism: Easy access and operation from the left side.
- 4Basic unit without handle: Simplified installation and maintenance.
- 5Flat terminal: Secure and reliable electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated Current 800A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Surface mounting; Flat connection |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 800 |
Specification | 3KD Specification 4 [500-1000A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD4844-0QE10-0 |
Specifications may be subject to change without notice
