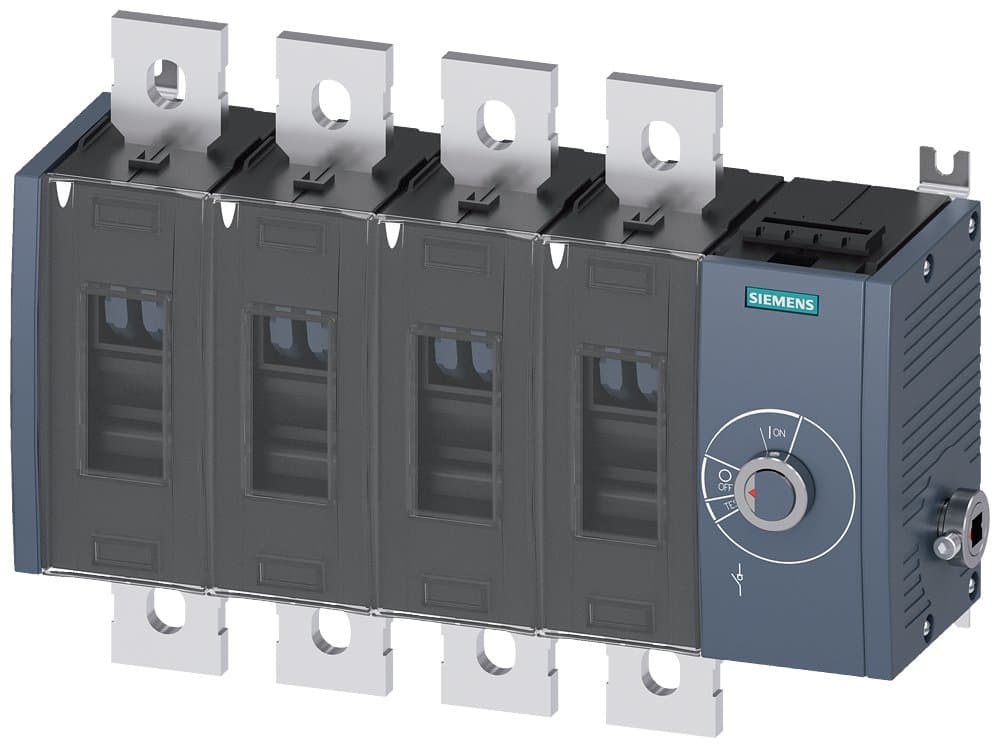

Product Model
3KD4844-0QE40-0
Selling Points
- 1Handles up to 800A for reliable operation in demanding environments.
- 2Suitable for various electrical applications requiring precise control.
- 3Equipped with an emergency switching-off mechanism for immediate safety.
- 4Measuring 100 x 100 mm with a shaft size of 10 x 10 mm, ideal for space-constrained installations.
- 5Built to withstand harsh conditions, ensuring long-lasting performance in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated current 800A, 4P, basic unit without handle, side operation mechanism located on the right side of the switch, surface mounting, flat connection |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 800 |
Specification | 3KD Specification 4 [500-1000A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD4844-0QE40-0 |
Specifications may be subject to change without notice
