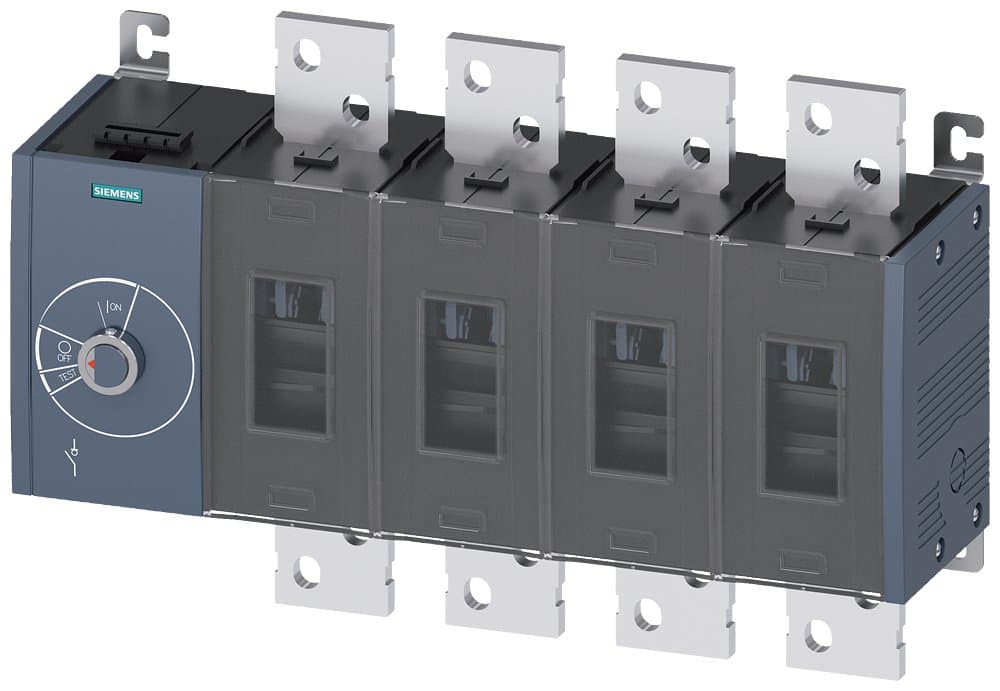

Product Model
3KD5044-0RE10-0
Selling Points
- 1High Current Rating: Rated for 1000 A, suitable for demanding electrical applications.
- 24-Pole Lateral Mechanism: Offers precise control with a 4-pole lateral operating mechanism.
- 3Safe Switching: Permits permanent switch-on and switch-off under load, protecting against electric shock.
- 4Durable Design: Constructed with high-quality materials for long-lasting performance.
- 5Versatile Mounting Options: Available for floor mounting, standard rail mounting, and front mounting in panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated Current 1000A; 4P; Basic unit without handle, side operation mechanism located on the left side of the switch; Surface mount; Flat connection |
Mounting Type | Surface Mount | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 1000 |
Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3KD5044-0RE10-0 |
Specifications may be subject to change without notice
