Product Model

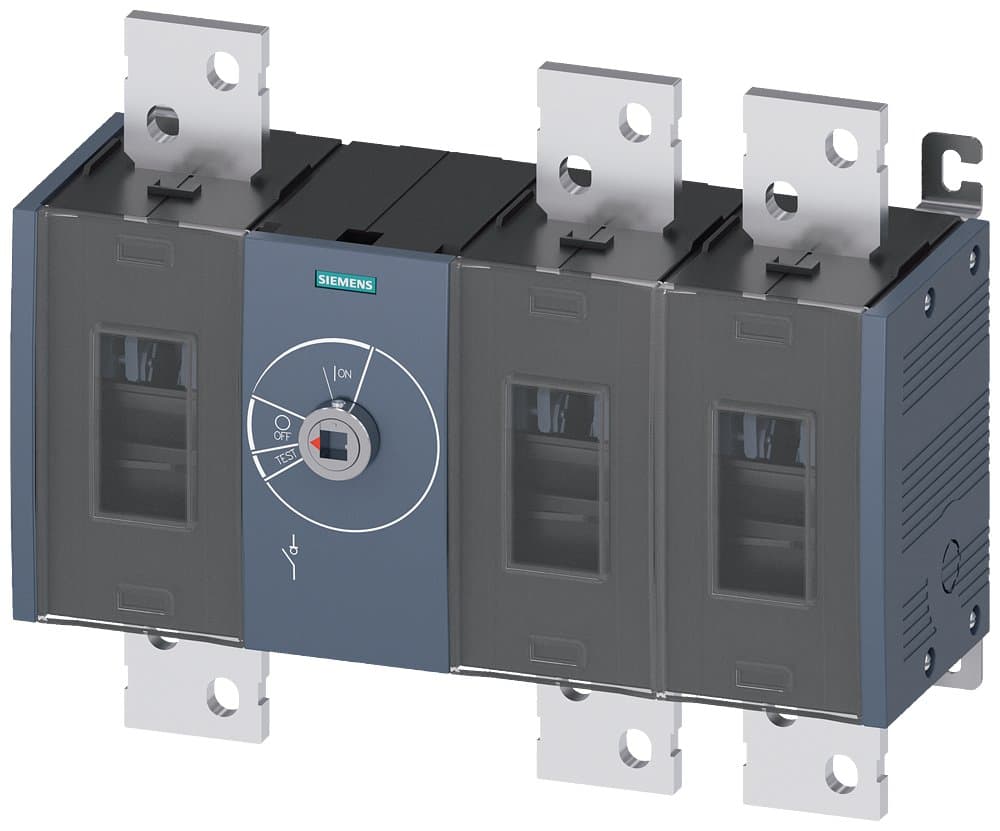

3KD5230-0RE20-0
Selling Points
- 1Compact design for space-efficient installations.
- 2High current ratings up to 200 A for reliable power handling.
- 3Versatile mounting options including floor and distribution board mounting.
- 4Advanced safety features with IP65 degree of protection.
- 5Compatible with a wide range of accessories for enhanced functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1250A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, flat connection, |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 3P | In(A) | 1250 |
Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD5230-0RE20-0 |
Specifications may be subject to change without notice
