Product Model

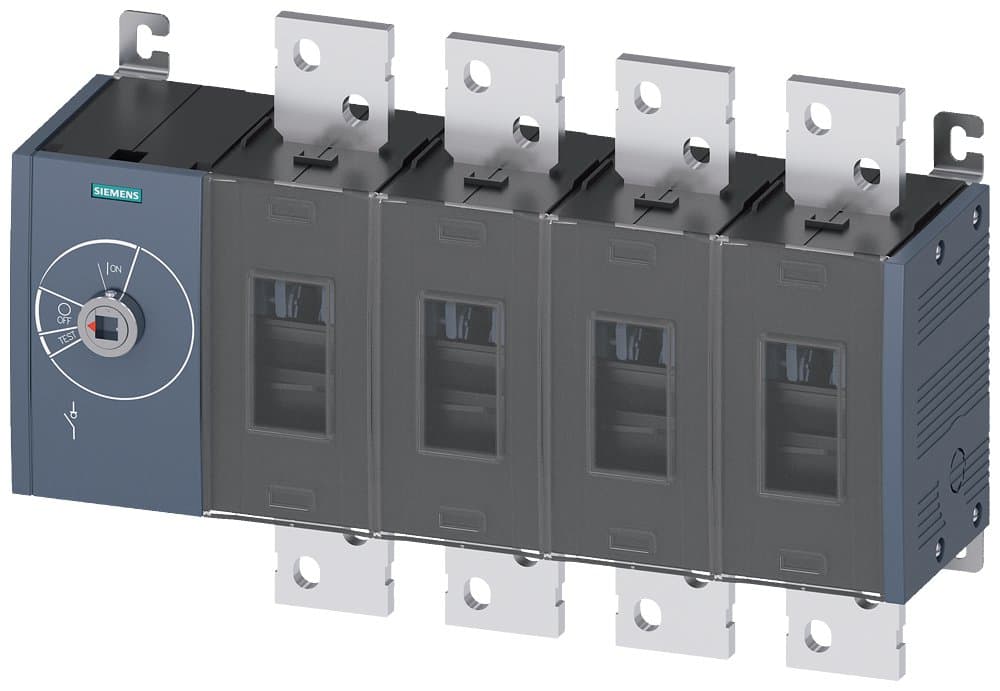

3KD5240-0RE10-0
Selling Points
- 1High Current Capacity: Handles up to 1250 A with a 4-pole design.
- 2Durable Construction: Meets IP00 and IP20 protection standards for reliable operation.
- 3Versatile Mounting Options: Suitable for various mounting positions including floor and front mounting.
- 4Long Service Life: Operates up to 8,000 mechanical cycles and 100 DC-21 A at 1000 V electrical cycles.
- 5Comprehensive Certifications: Compliant with IEC 60947-3 and UL 508 standards for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KD Specification 5; Rated current 1250A, 4P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, flat connection, |
Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
Number of Poles | 4P | In(A) | 1250 |
Specification | 3KD Specification 5 [1000-2000A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3KD5240-0RE10-0 |
Specifications may be subject to change without notice
