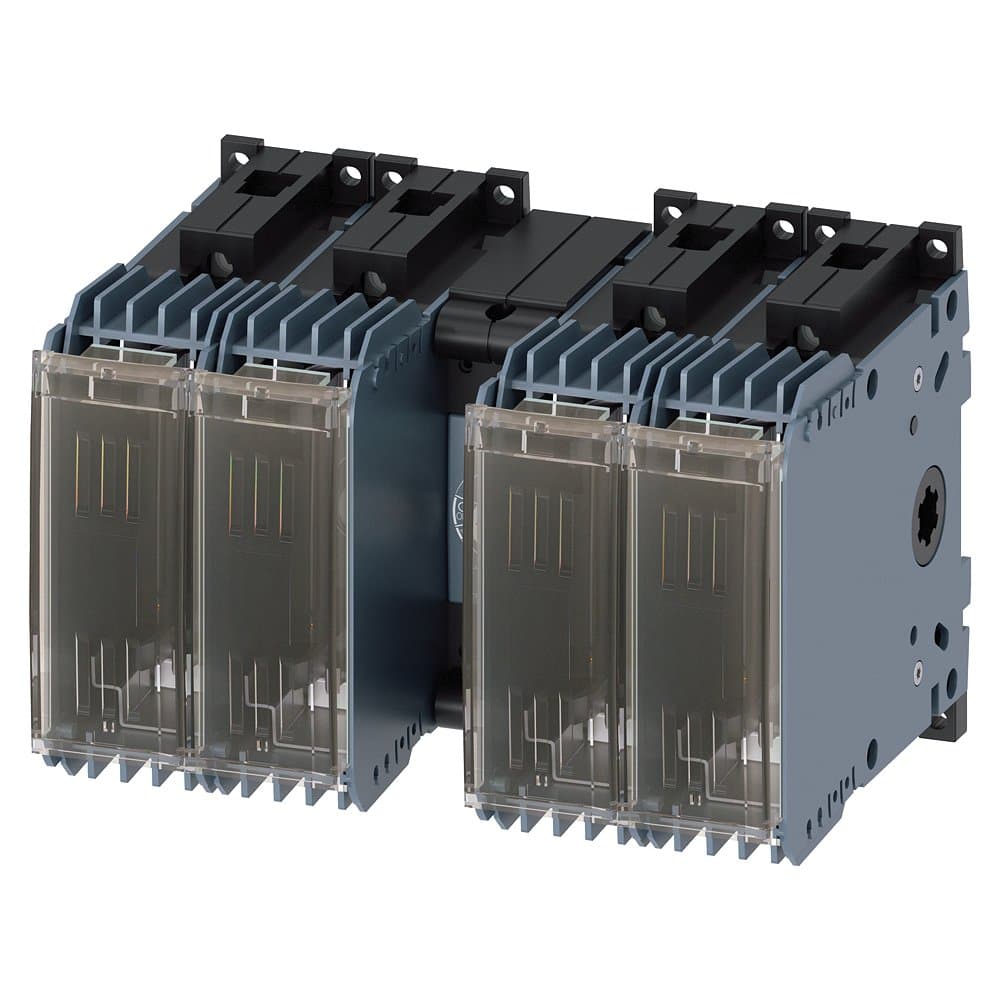

Product Model
3KF1406-0MB11
Selling Points
- 1Compact Design: The 3KF1406-0MB11 features a compact design, perfect for space-limited installations.
- 2High Current Rating: Supports up to 63 A with a 4-pole configuration, ensuring robust performance in various applications.
- 3Easy Mounting Options: Available for floor mounting, standard mounting rail, and front mounting, offering flexibility in installation.
- 4Advanced Safety Features: Equipped with a rotary operating mechanism and auxiliary switches for enhanced safety and control.
- 5Compliance with Standards: Meets IEC 60947-3 and VDE 0660 Part 107 standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 63A, Basic Unit - Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch, Surface Mounting |
Installation Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
Terminal Type: | Box Terminal | Number of Poles: | 4P |
In(A): | 63 | Specification: | 3KF1_63 |
Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module Located at the Center of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF1406-0MB11 |
Specifications may be subject to change without notice
