Product Model

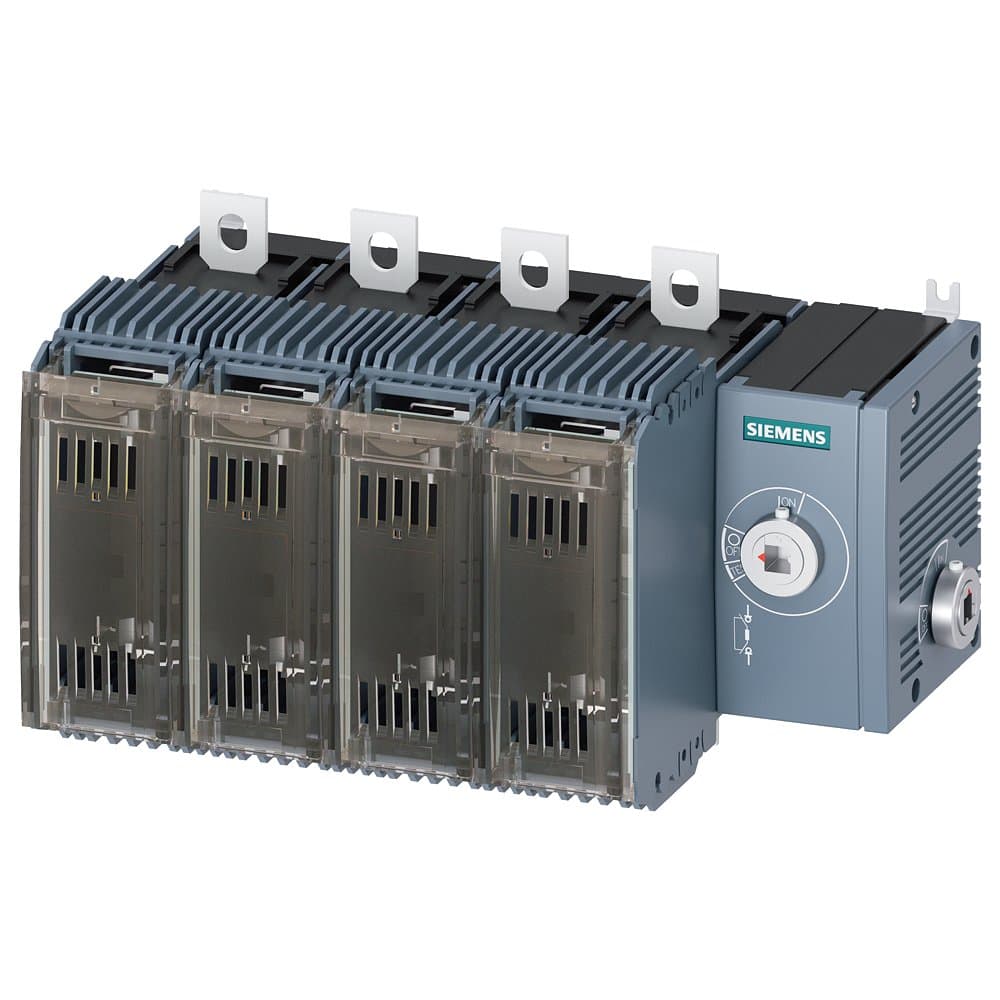

3KF2412-4RF11
Selling Points
- 1Compact Design: Ideal for space-limited installations with a size of 100 x 100 mm.
- 2Emergency Switching: Equipped with an emergency switching-off mechanism for critical situations.
- 3Tolerance Compensation: Ensures precise operation with tolerance compensation.
- 4Versatile Mounting Options: Supports floor mounting, DIN rail mounting, and front mounting.
- 5High-Current Capability: Handles up to 125 A with a 4-pole configuration for robust power distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 125A, basic unit — side operation mechanism, no handle, operation mechanism module located on the right side of the switch, surface mount |
Mounting Type | Surface mount | Fuse Specification | Size: 00/000 |
Terminal Type | Flat terminal | Number of Poles | 4P |
In(A) | 125 | Specification | 3KF2_125 |
Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the right side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF2412-4RF11 |
Specifications may be subject to change without notice
