Product Model

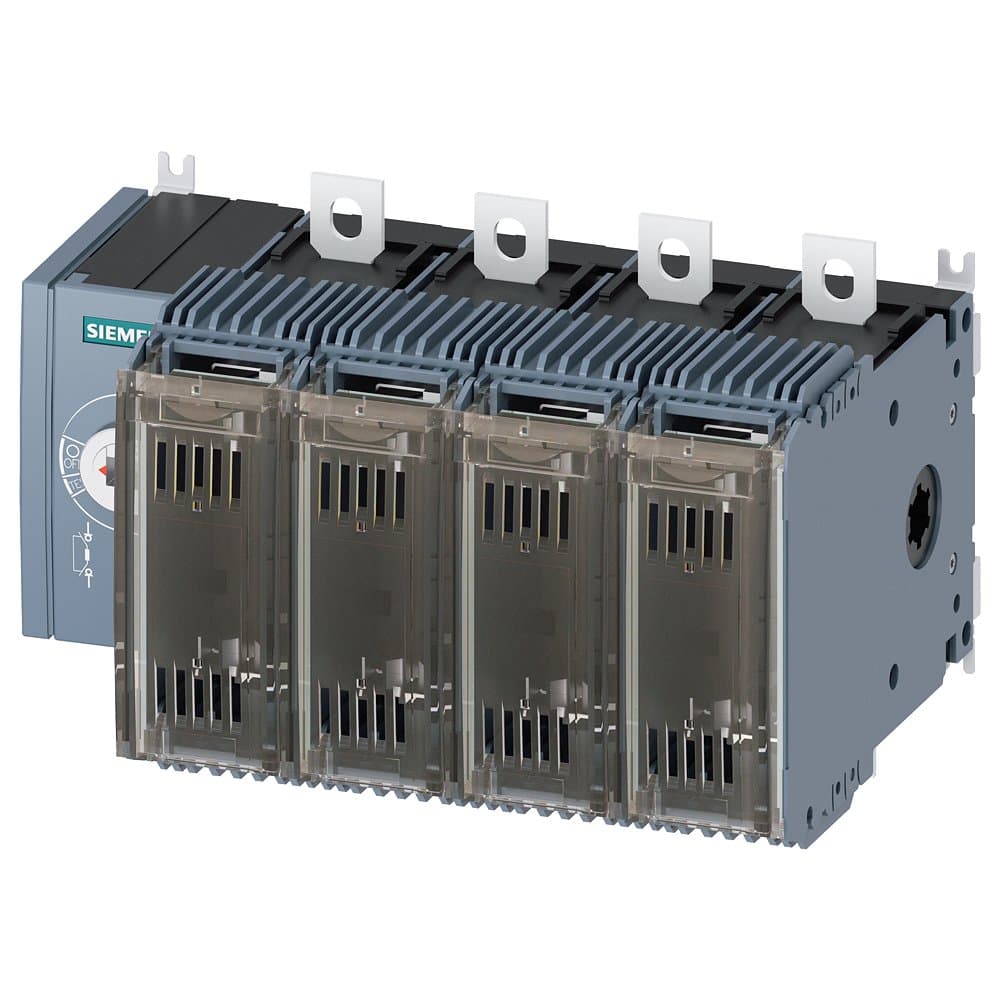

3KF2416-4LF11
Selling Points
- 1Compact design for space-efficient installations.
- 2Compatible with LV HRC fuse Sz. 000.
- 34-pole configuration for reliable switching.
- 4Ideal for low-voltage applications up to 160 A.
- 5Durable and reliable performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 160A, basic unit — side operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 00/000 |
Terminal Type: | Flat terminal | Number of Poles: | 4P |
In(A): | 160 | Specification: | 3KF2_160 |
Switch Type: | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF2416-4LF11 |
Specifications may be subject to change without notice
