Product Model

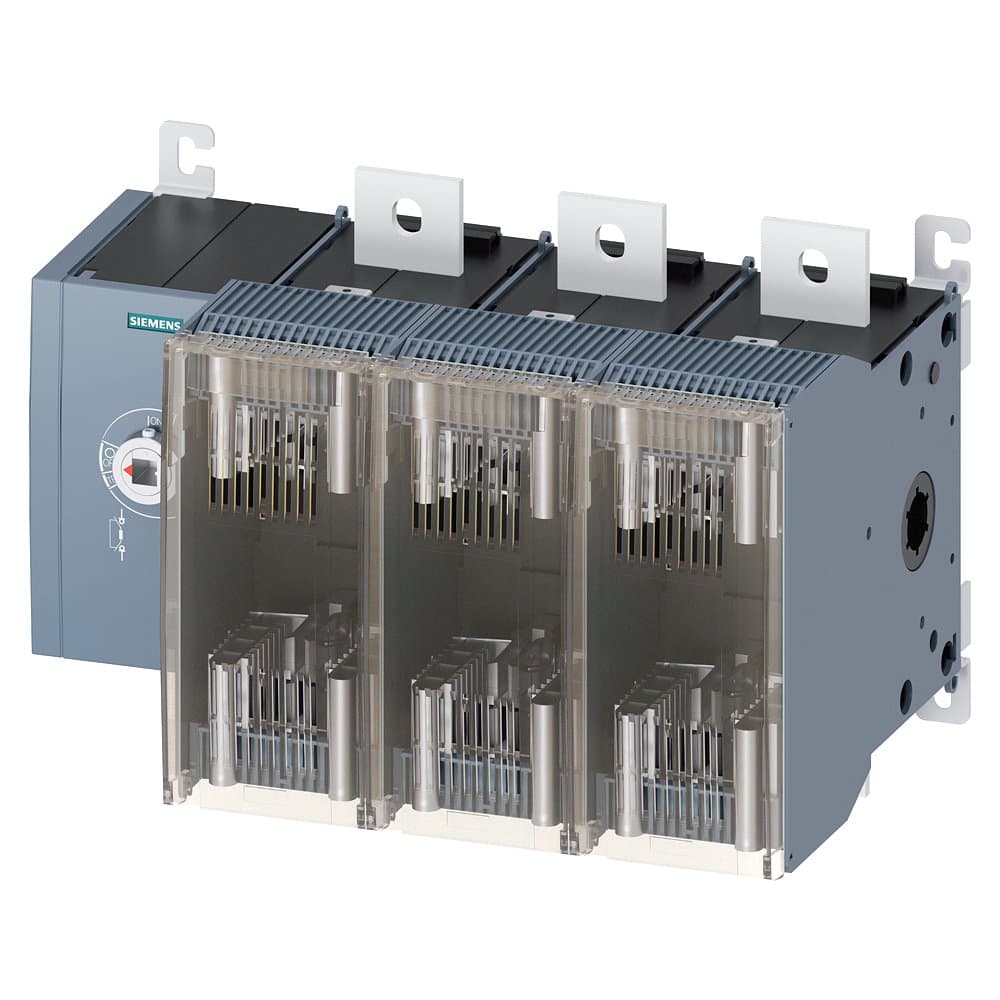

3KF5380-0LF11
Selling Points
- 1End-to-end safety: Protects users and systems from electric shock with permanent switch-on and switch-off under load.
- 2Easy installation: Quick and simple installation process, minimizing downtime and ensuring fast operation.
- 3Modular design: Allows for additional functions to be retrofitted at any time, enhancing the device's versatility.
- 4Comprehensive accessories: Offers a wide range of accessories for customization and optimization of electrical installations.
- 5Convenient ordering: Optimizes stock-keeping with fast delivery and convenient ordering processes, saving time and money.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 800A, Basic Unit — Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch, Surface Mounting |
Mounting Type: | Surface Mounting | Fuse Specification: | Size: 2/3 |
Terminal Type: | Flat Terminal | Poles: | 3P |
In(A): | 800 | Specification: | 3KF5_800 |
Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF5380-0LF11 |
Specifications may be subject to change without notice
