Product Model

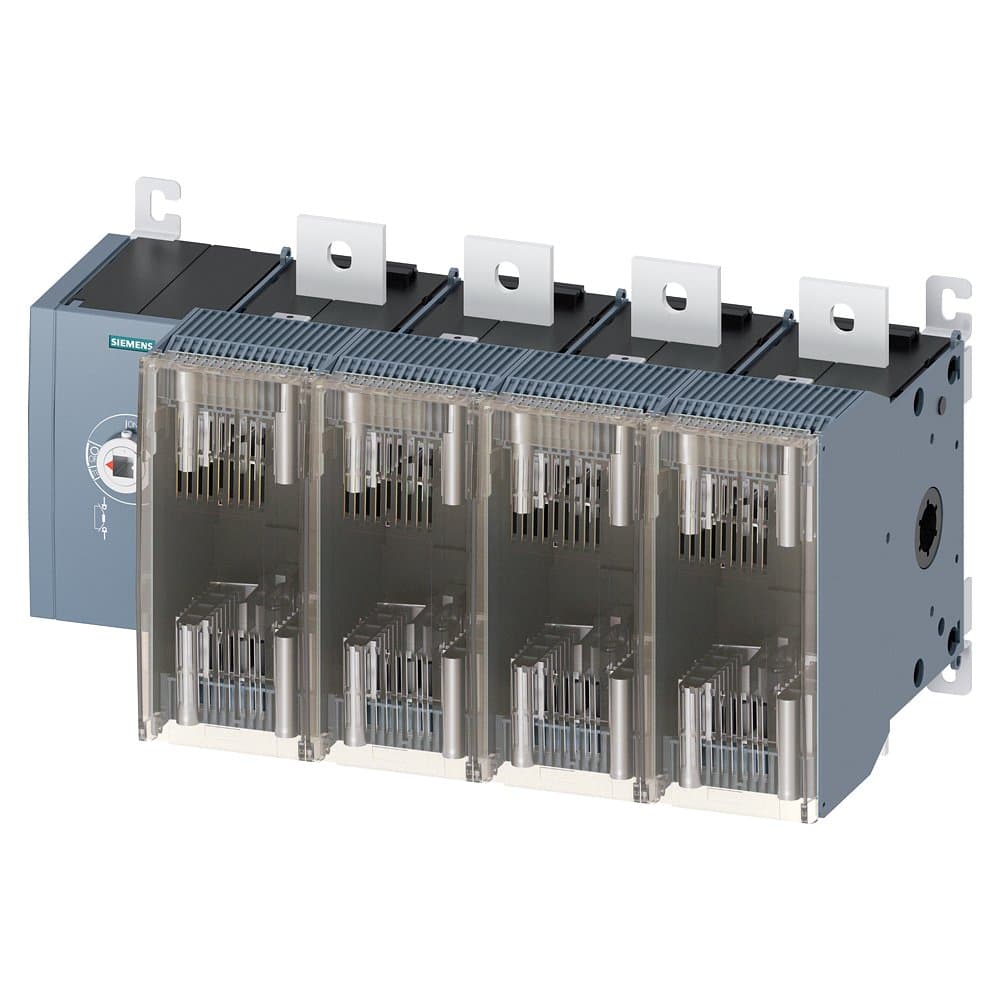

3KF5463-0LF11
Selling Points
- 1High Current Capacity: Handles up to 630A with a 4-pole design.
- 2Front Operating Mechanism: Easy left-hand operation for efficient switching.
- 3LV HRC Fuse Compatible: Suitable for LV HRC fuse sizes 2 and 3.
- 4Flat Terminal Connection: Simple and secure flat terminal connections.
- 5Compact Size: Compact size of 5 for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), rated current 630A, basic unit — front operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
Mounting Type: | Surface mount | Fuse Specification: | Size: 2/3 |
Terminal Type: | Flat terminal | Number of Poles: | 4P |
In(A): | 630 | Specification: | 3KF5_630 |
Switch Type: | Basic unit, front operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3KF5463-0LF11 |
Specifications may be subject to change without notice
