Product Model

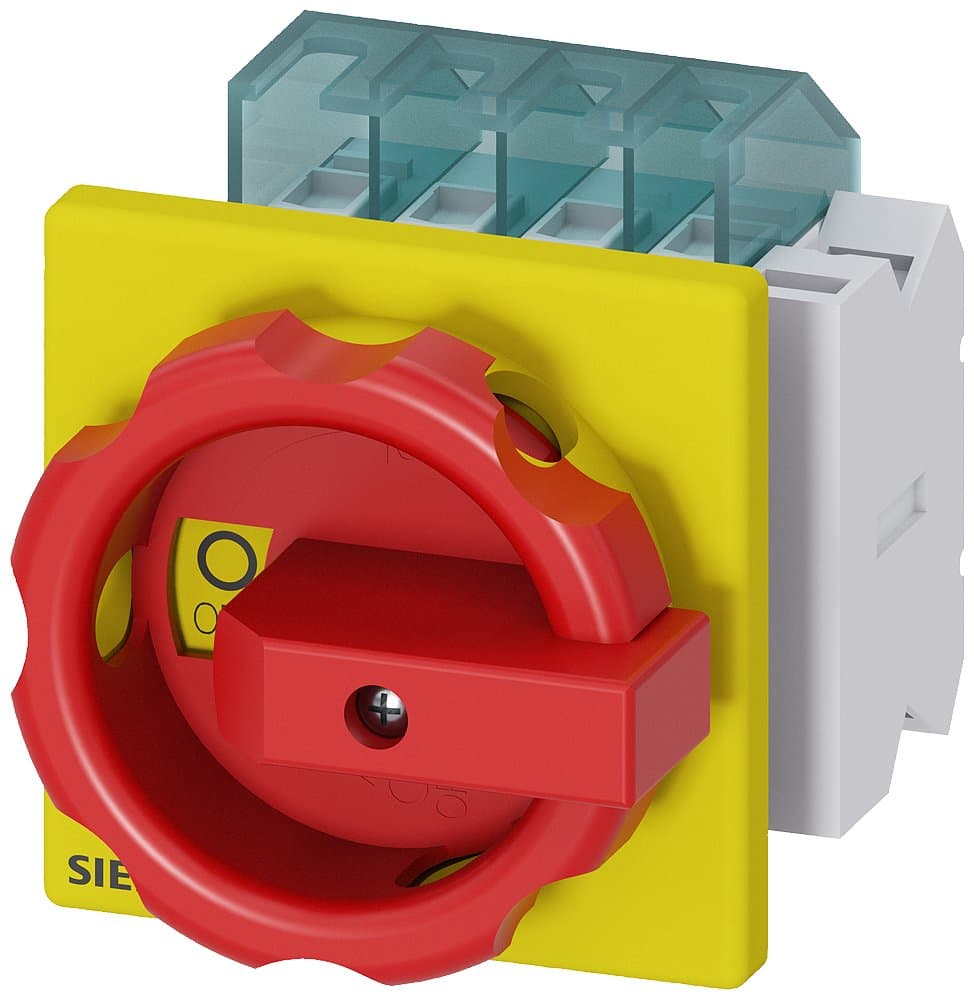

3LD2003-2EP53
Selling Points
- 1Reliable Emergency Shutdown: Designed for quick and safe disconnection in emergency situations.
- 2High Current Rating: Handles up to 16A, suitable for various industrial applications.
- 34-Pole Configuration: Ensures comprehensive protection with four poles.
- 4SENTRON Technology: Built with Siemens' advanced SENTRON technology for enhanced performance.
- 5Durable Construction: Constructed to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P+N, with rotary operating mechanism, red/yellow handle, flush mounting, four-hole installation on cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type | Flush mounting cabinet door with four-hole installation |
Other | AC-23A/7.5KW; 1NO+1NC | Number of Poles | 3P+N |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2003-2EP53 |
Specifications may be subject to change without notice
