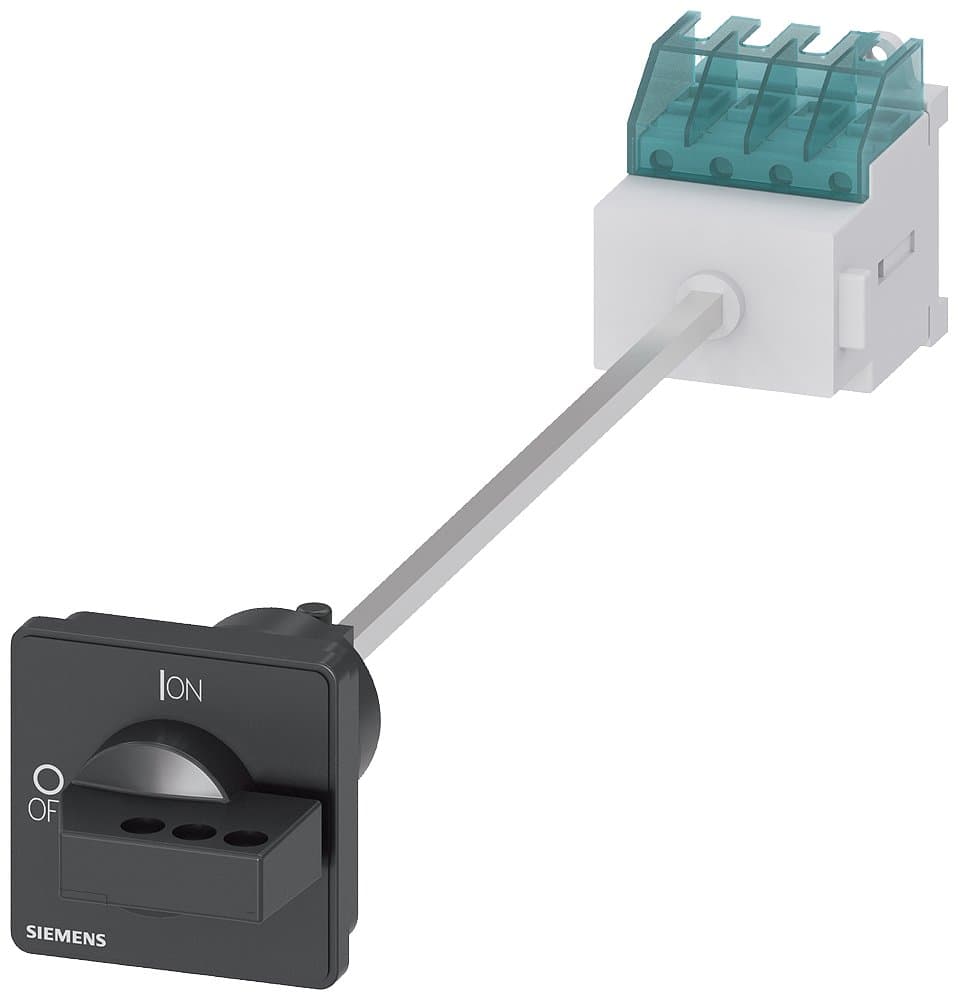

Product Model
3LD2017-0TK11
Selling Points
- 1High-Quality Main Switch: Designed for reliable operation in industrial settings.
- 216 A Rating: Suitable for applications requiring up to 16 amperes.
- 37.5 kW Operating Power: Handles significant electrical loads at 400 V AC.
- 4Floor Mounting with Door Coupling: Easy installation and secure door coupling for safety.
- 5Durable Construction: Built to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, detachable door-coupled rotary operation mechanism, black handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/7.5KW, UL508 Certification | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
Other | AC-23A/7.5KW, UL508 Certification | Number of Poles | 3P |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | Detachable door-coupled rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2017-0TK11 |
Specifications may be subject to change without notice
