Product Model
3LD2054-1TP51
Selling Points
- 1Reliable 3-Pole Switch Disconnector: Designed for main switch applications with 3 poles.
- 2High Current Rating: Handles 16 A of current with a maximum operating temperature of +55°C.
- 3Powerful Operating Power: Supports up to 7.5 kW at AC-23 A at 400 V.
- 4Durable Construction: Features an IP65 rating for protection against dust and water.
- 5Easy Installation: Front-mounted design with central handle mounting for convenience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

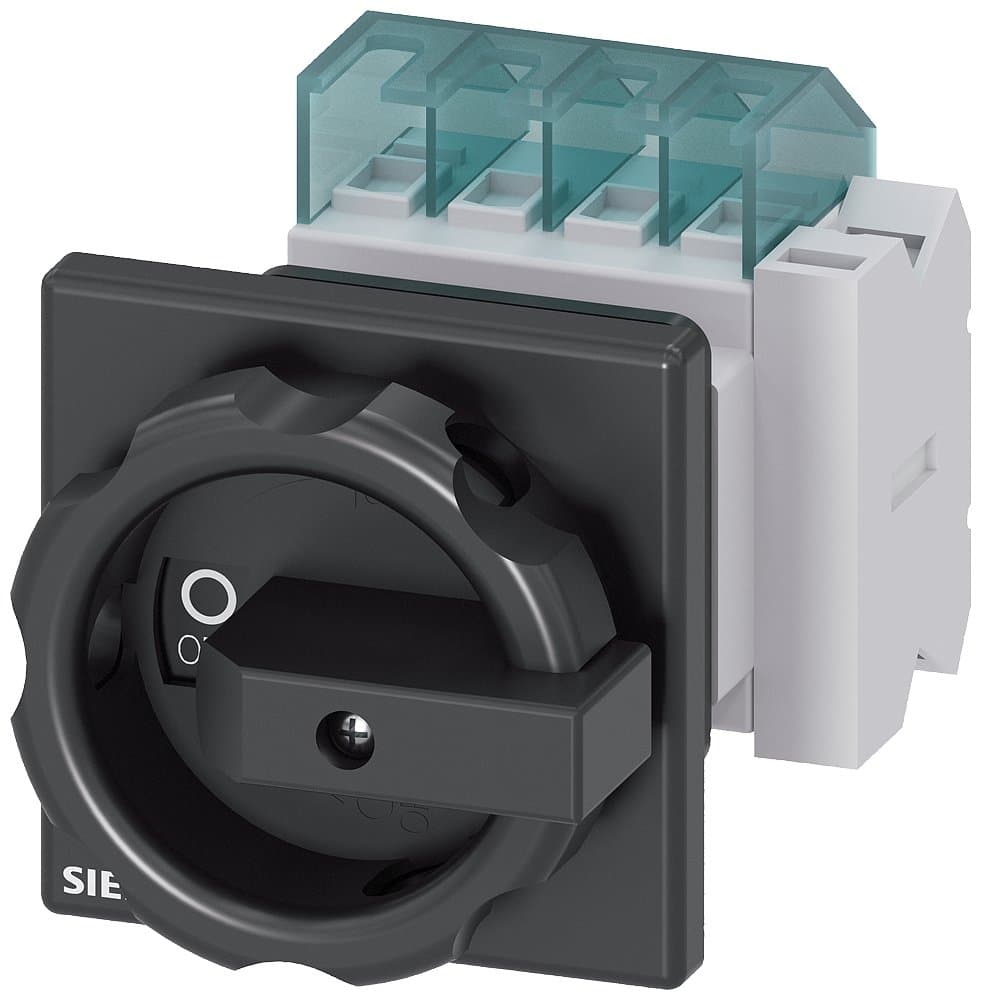

Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush mounted, cabinet door center hole installation, AC-23A/7.5KW; 1NO+1NC | Installation Type: | Flush mounting in cabinet door center hole |
Other: | AC-23A/7.5KW; 1NO+1NC | Number of Poles: | 3P |
In(A): | 16 | Specification: | 3LD20【16A】 |
Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2054-1TP51 |
Specifications may be subject to change without notice
