Product Model
3LD2054-1TP53
Selling Points
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Supports up to 16 A of uninterrupted current, ensuring reliable performance in various applications.
- 3Compatible with floor mounting, standard mounting rails, and front mounting for flexible installation.
- 4Meets IP65 degree of protection standards, safeguarding against environmental factors.
- 5Certified according to UL 508 and UL 60947-4-1 standards for added reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

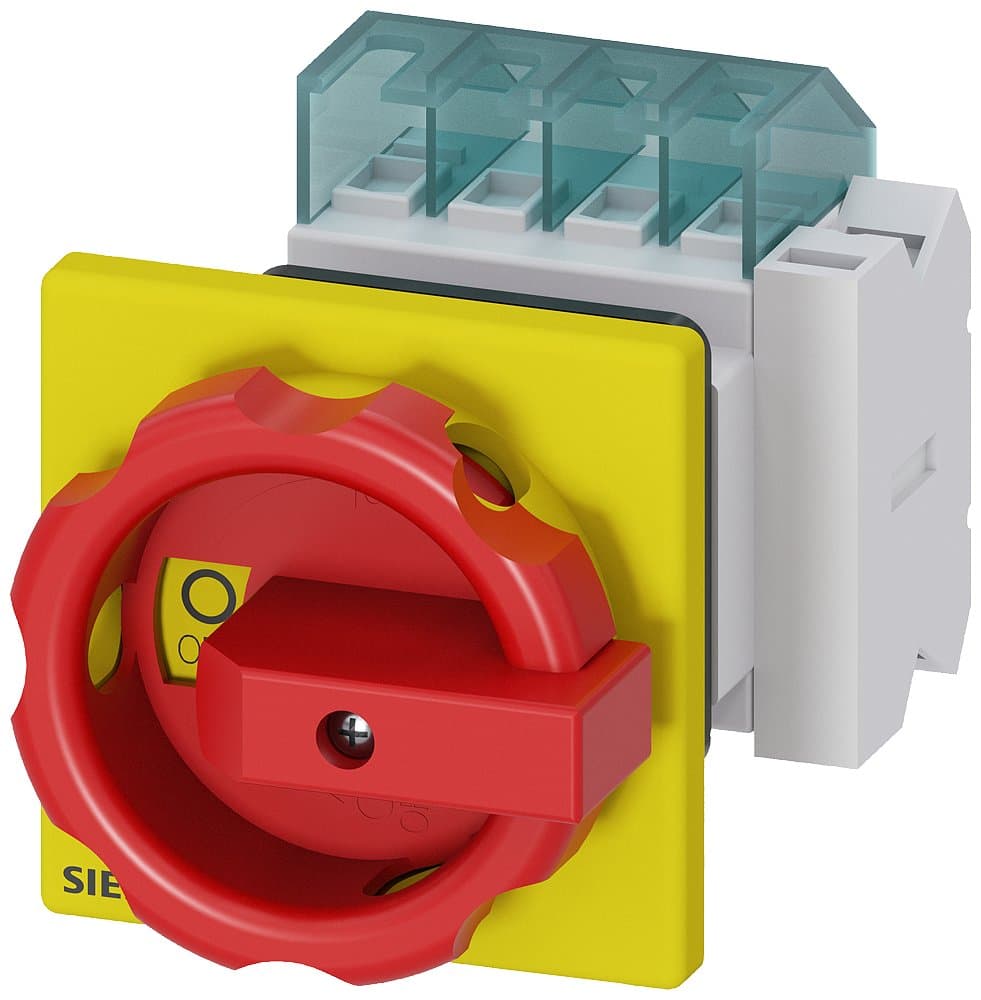

Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, red/yellow handle, mounting in the center hole of the cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type | Mounting in the center hole of the cabinet door |
Other | AC-23A/7.5KW; 1NO+1NC | Number of Poles | 3P |
In(A) | 16 | Specification | 3LD20【16A】 |
Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3LD2054-1TP53 |
Specifications may be subject to change without notice
